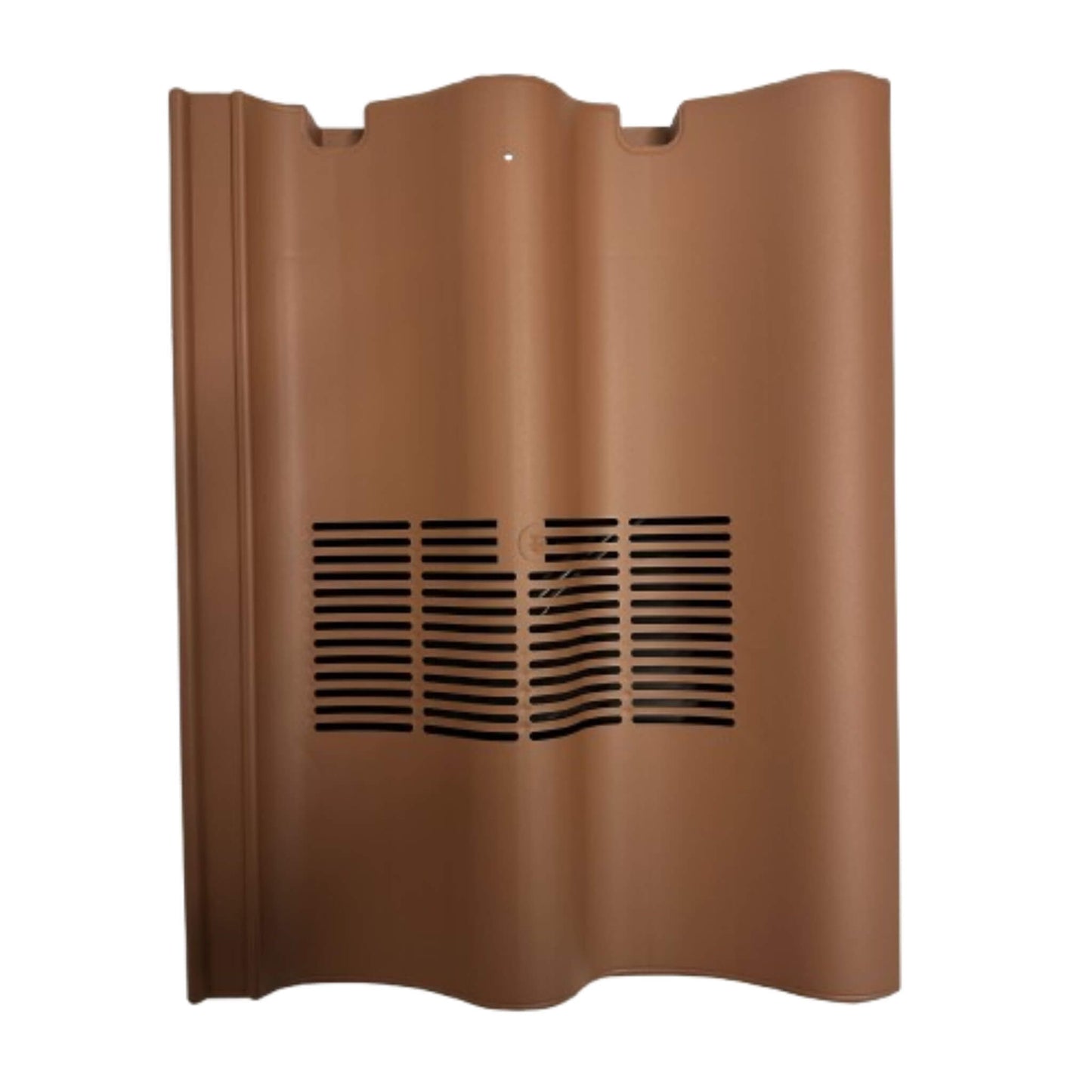

Beddoes Products Inline Marley Mendip Vent Tile
Inline Marley Mendip Vent Tile
The Beddoes Products Inline Marley Mendip Vent Tile has a simple structure to match standard roof tiles. Sleek design ensures the vent is almost invisible from ground level. Water entering the vent flows back out onto the roof.
Marley Mendip Double Pantile
Redland Grovebury Double Pantile
Length - 420 mm
Width - 330 mm
A Beddoes Products Inline Marley Mendip Vent Tile gives a discreet solution to 2 problems:
Ventilation of a roof space
A retrofit solution to condensation in the roof space.
Soil or mechanical extraction
A terminal for soil vent pipes or mechanical extraction units - most commonly bathroom extraction.
Airflow resistance charts are available on request to check compatibility for other purposes.
Installation is simple.

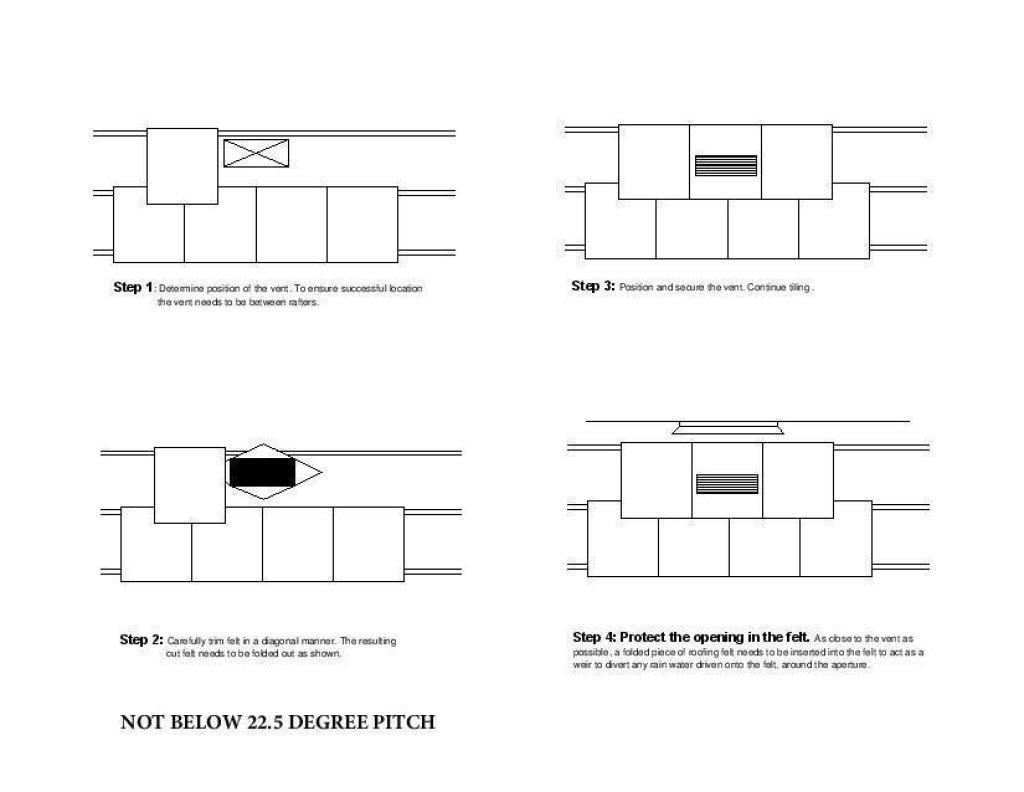

Product fitting instructions included.
Country of Manufacture

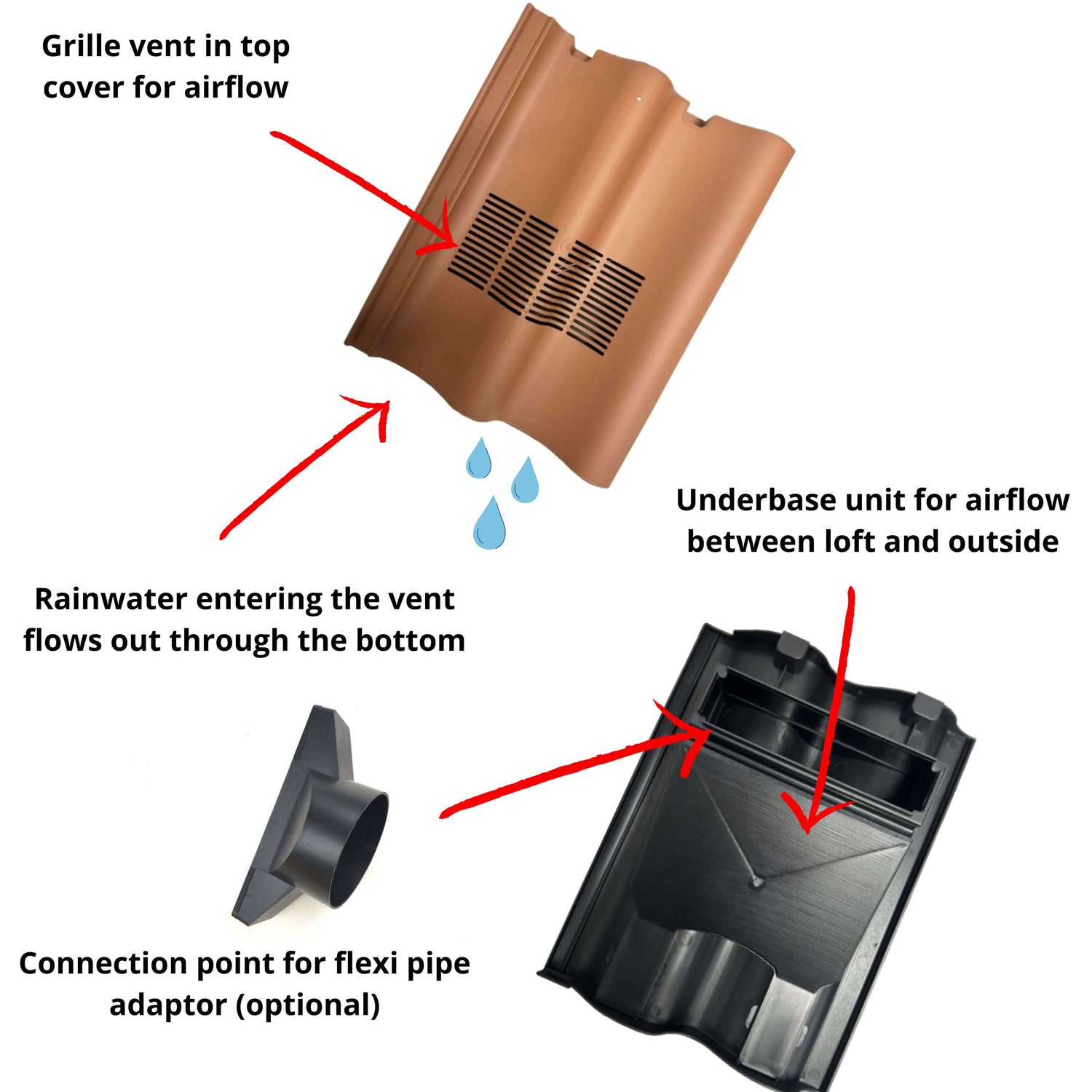

Upper cover containing a grille in the visible area of the tile.

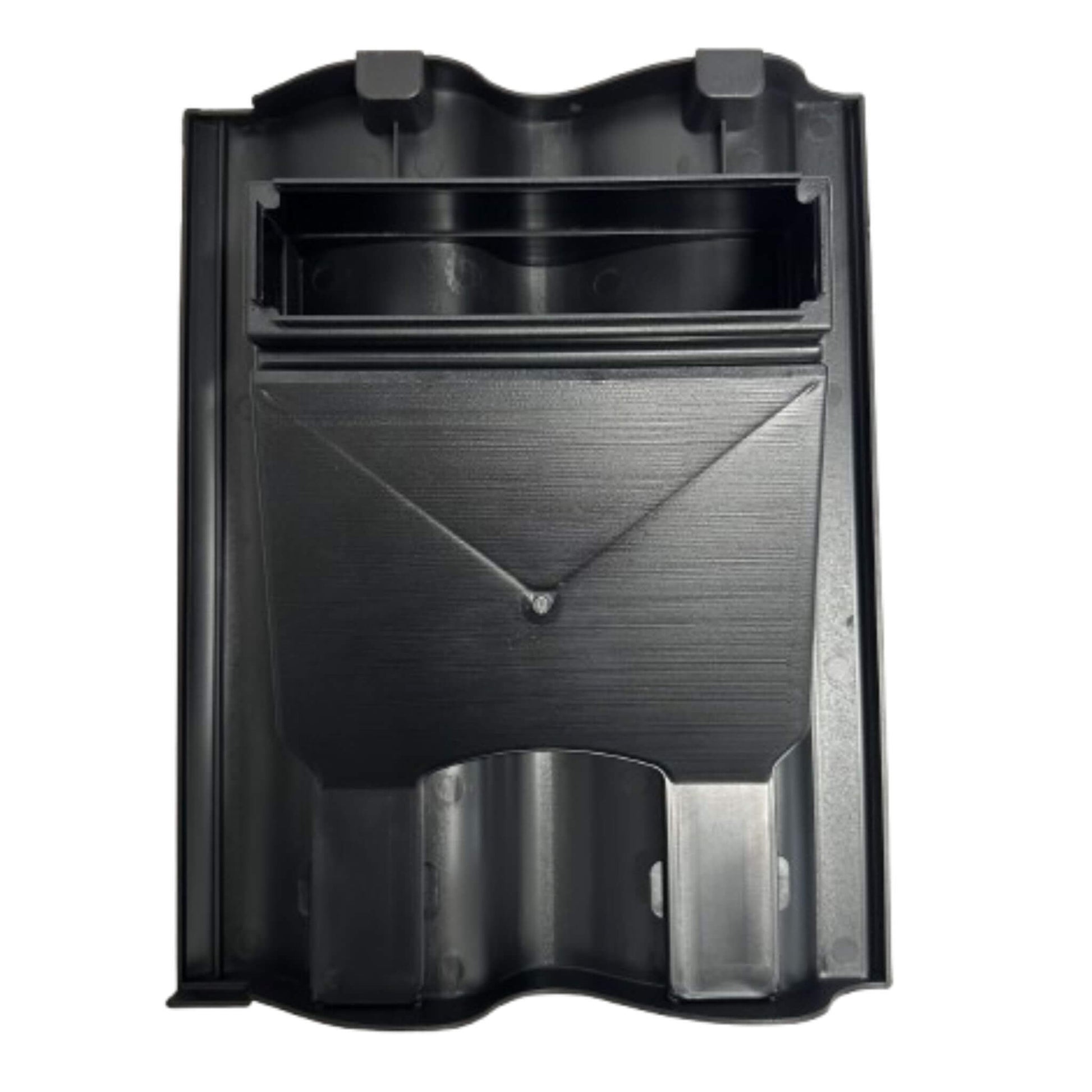

An underbase collects and discharges rainwater back to the roof.
The 4mm grille allows an airflow capacity of 10,000mm² per unit.
The grille also acts as an insect screen and a baffle against wind-driven rain.
Over 22.5 degrees.

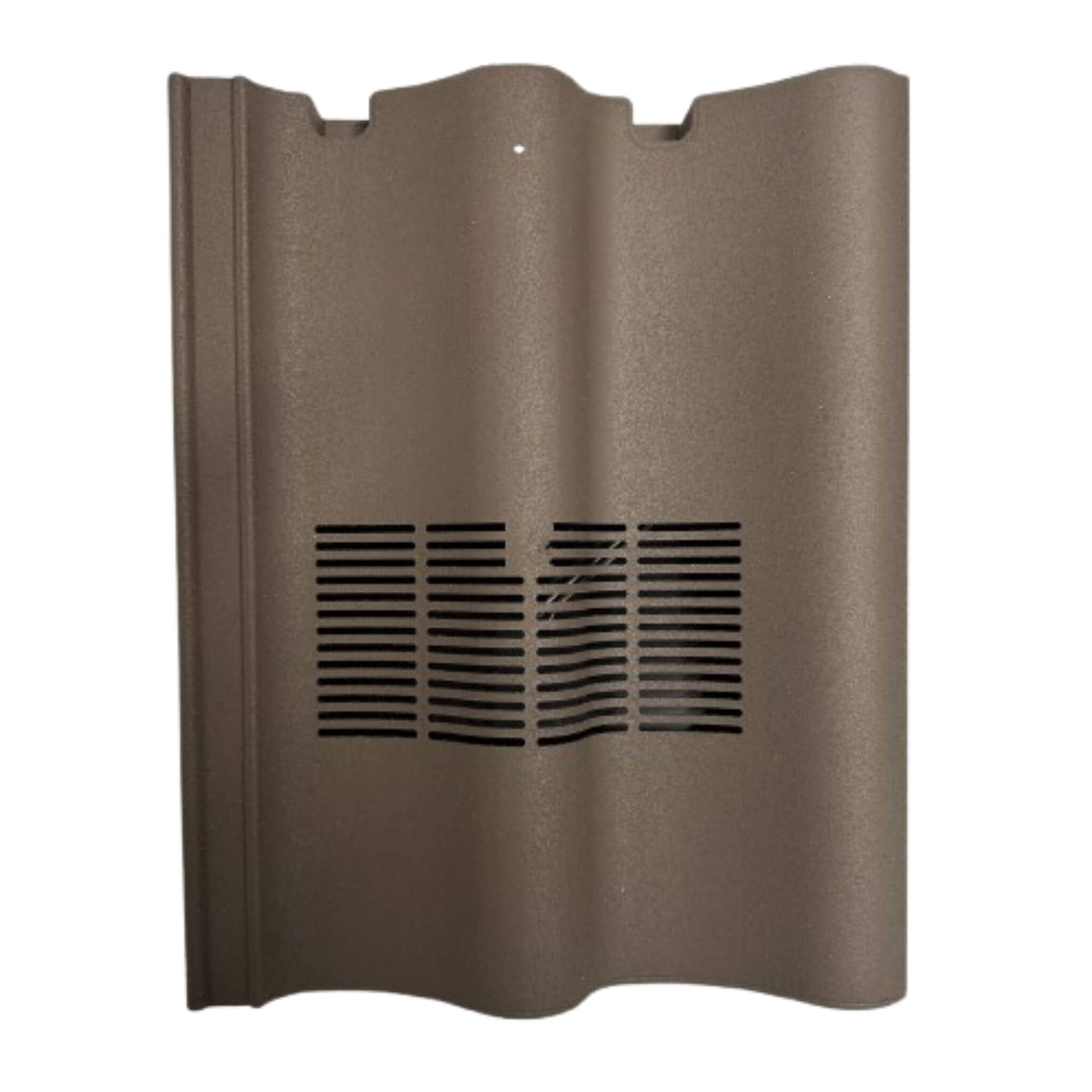

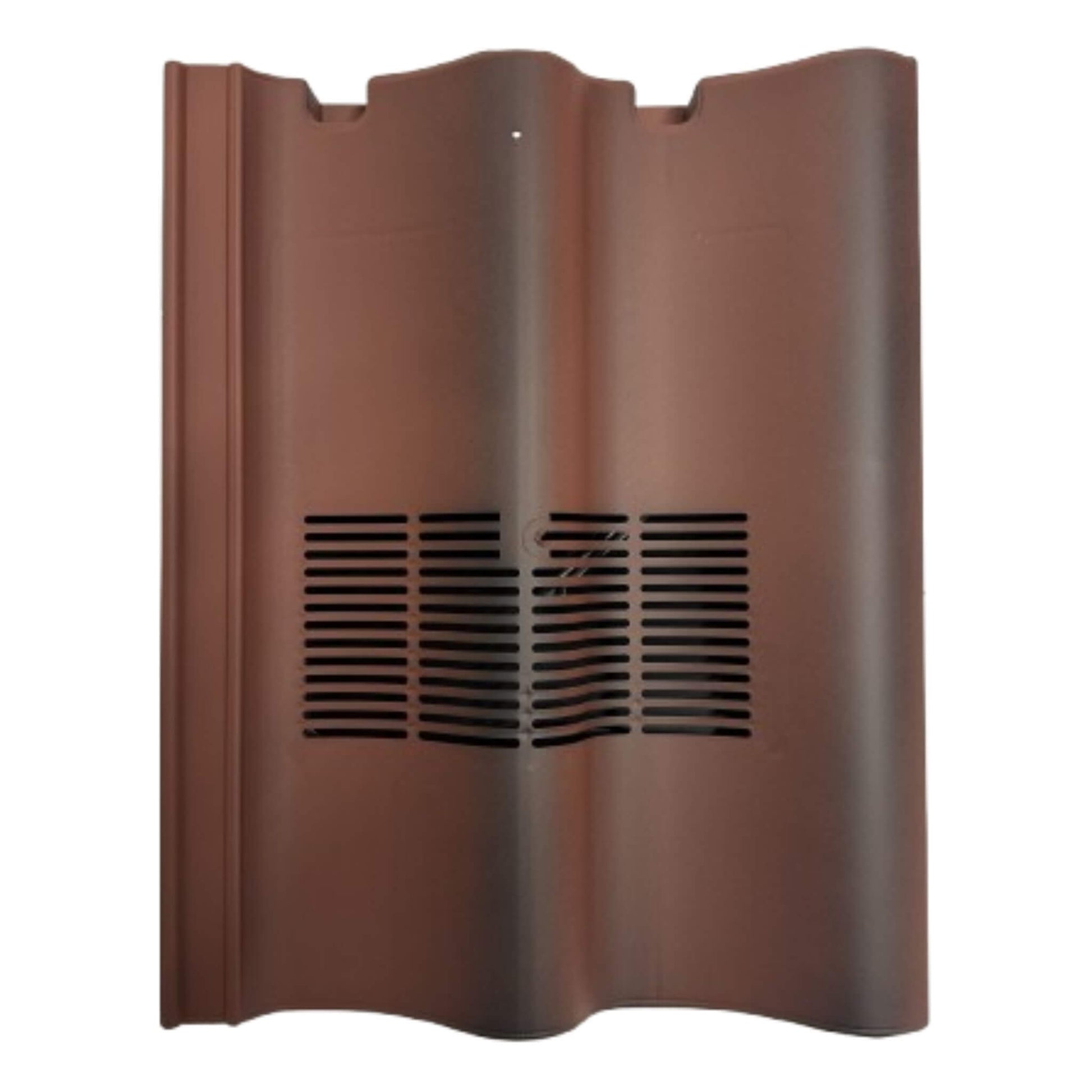

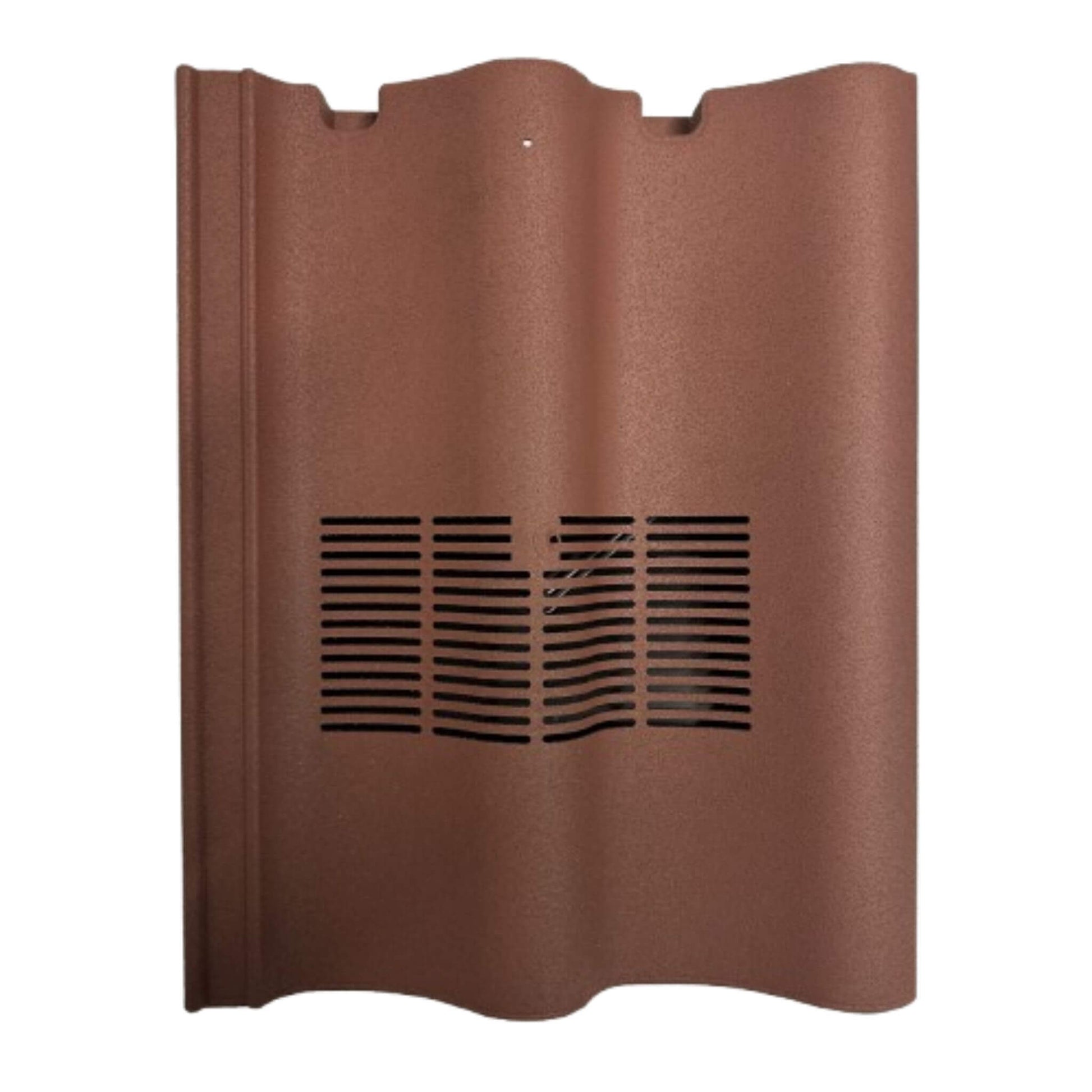

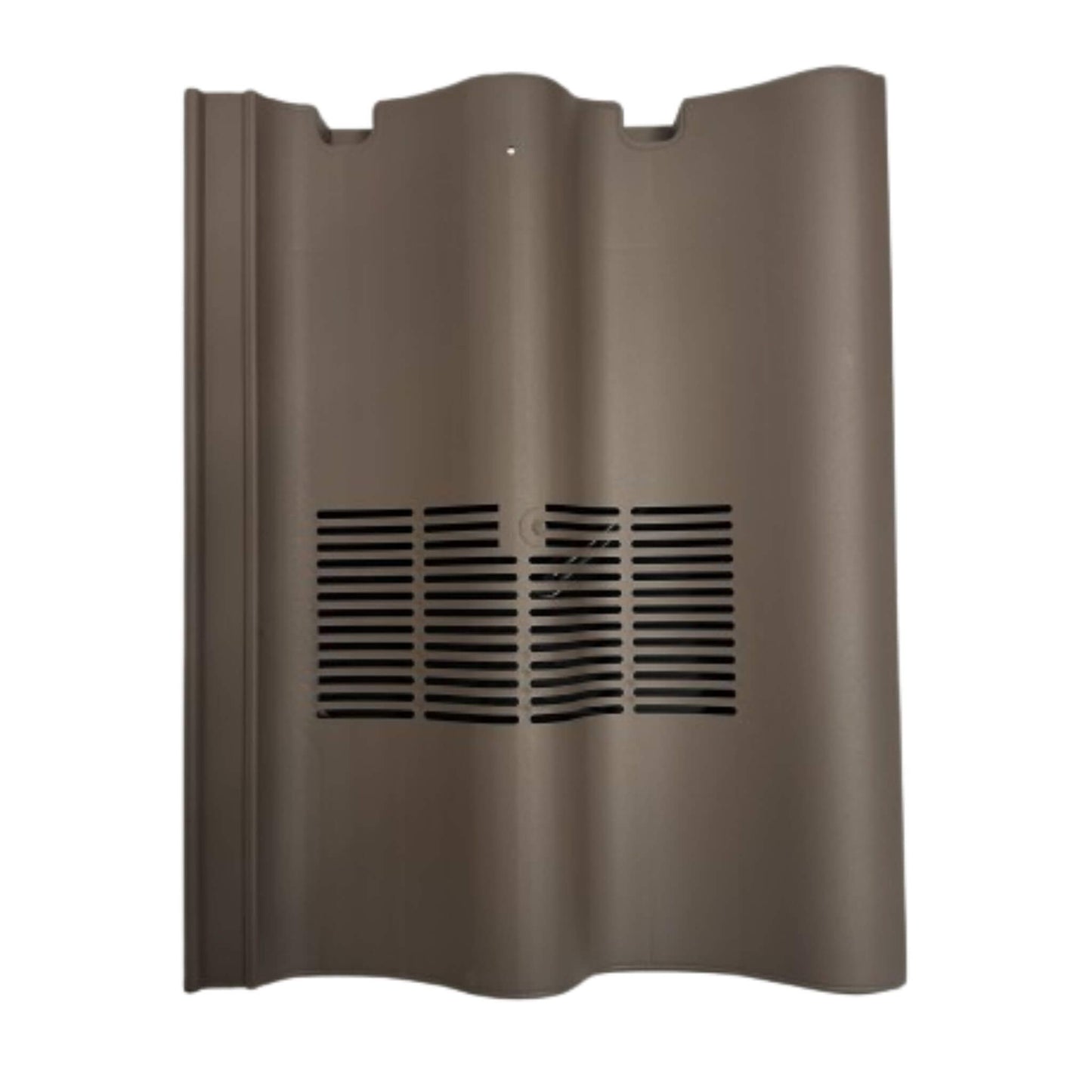

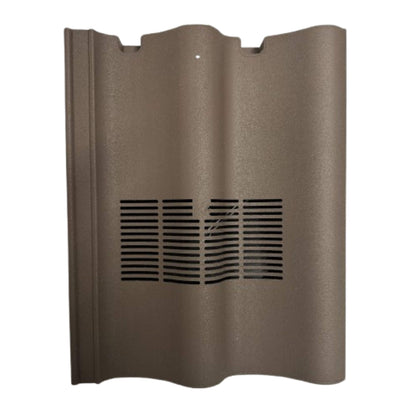

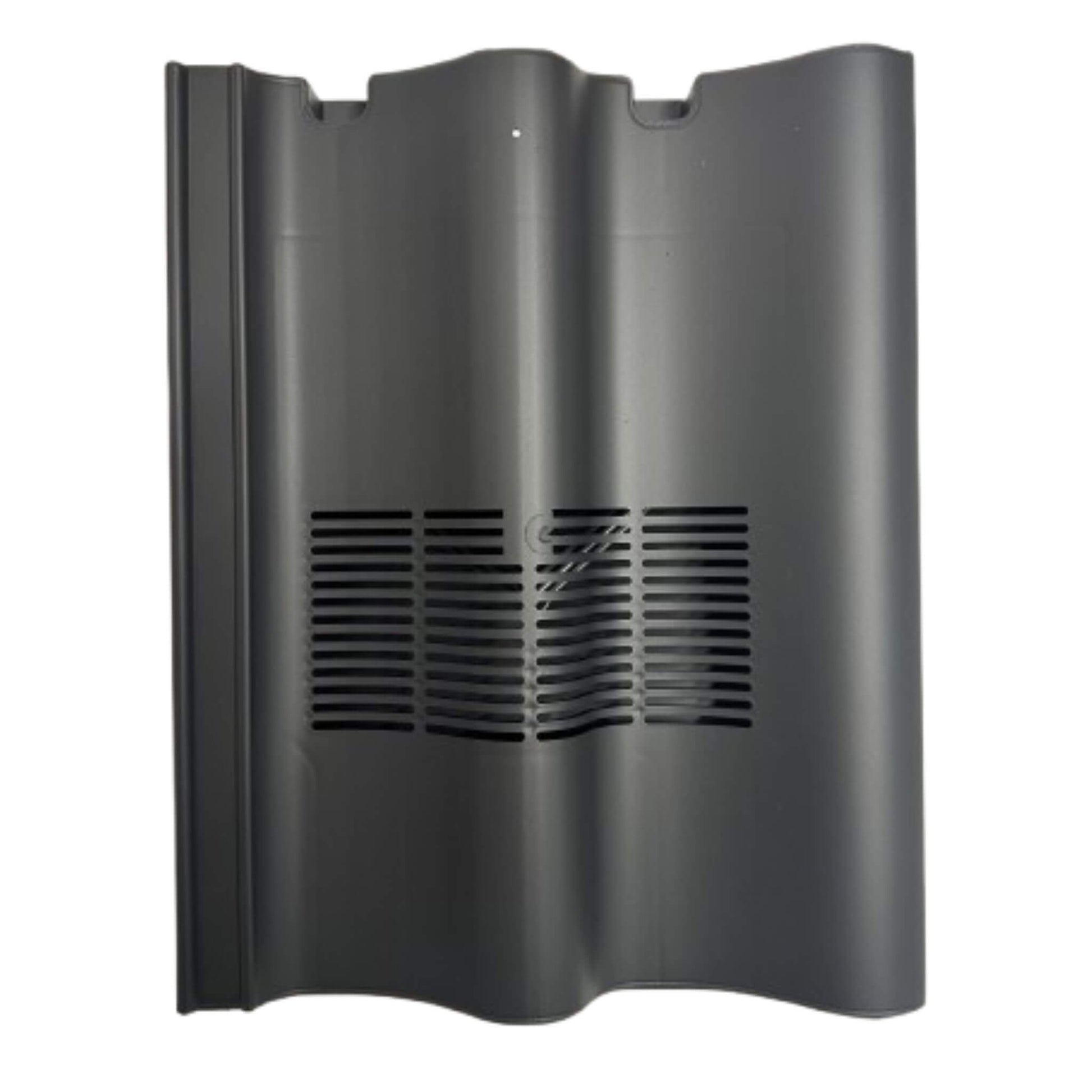

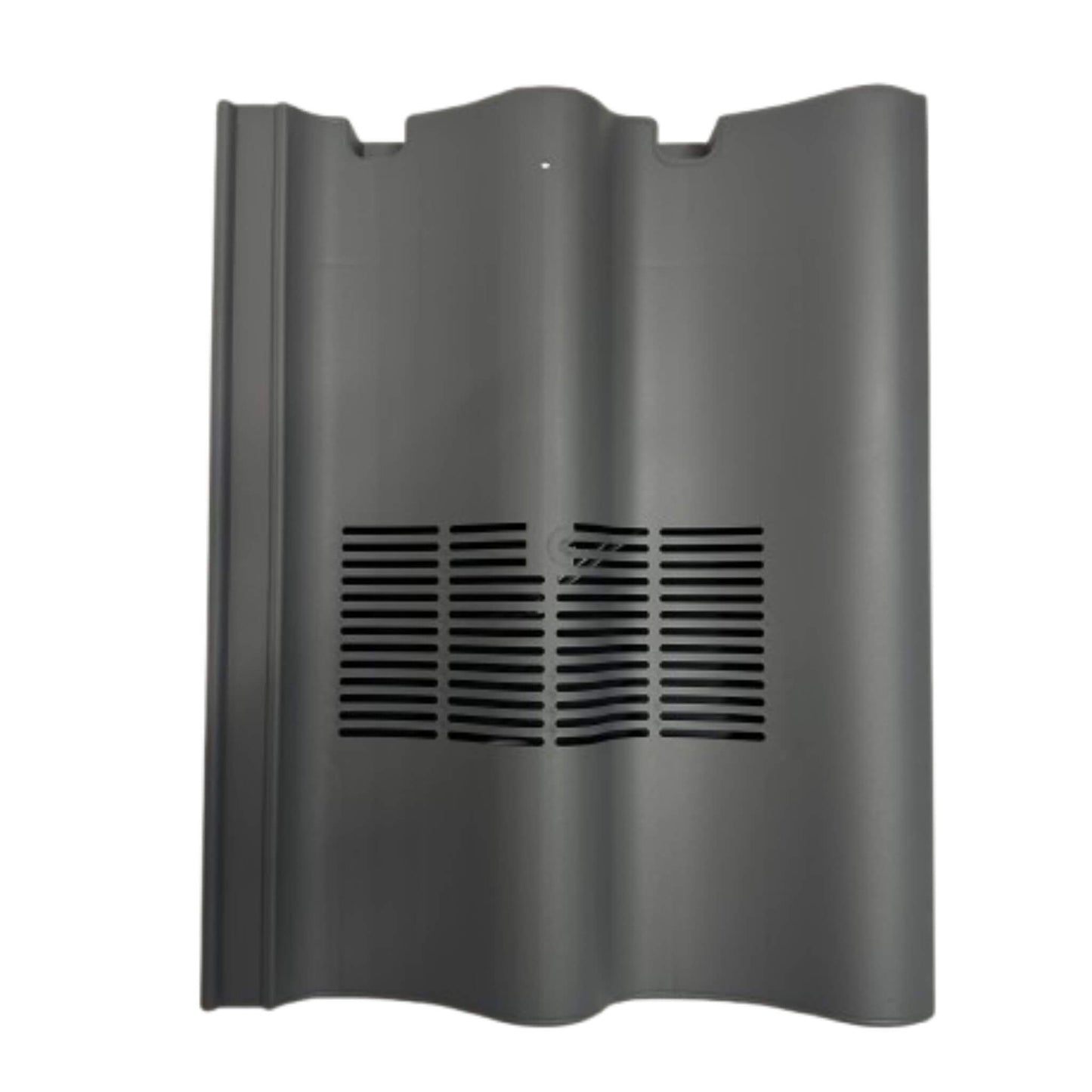

You can select your colour from the colour drop down menu.
You can request a colour match by email to firstname.lastname@example.org or phone on 07977748593.
Suitable for situations where only ventilation is required. If you aren’t connecting to any pipe work now or in the future, the ‘vent only’ option is all you require.
Vent + Pipe Adaptor
The pipe adaptor has a 110mm diameter and connects the roof tile vent to extraction units via existing pipe work.
Vent + Pipe Adaptor + Flexible Pipe
The flexible pipe provides a high quality flexible connection between the roof tile vent and existing pipe work. It can extend between lengths of 250mm - 550mm. Adjustable ties allow diameters between 120mm - 77mm.
