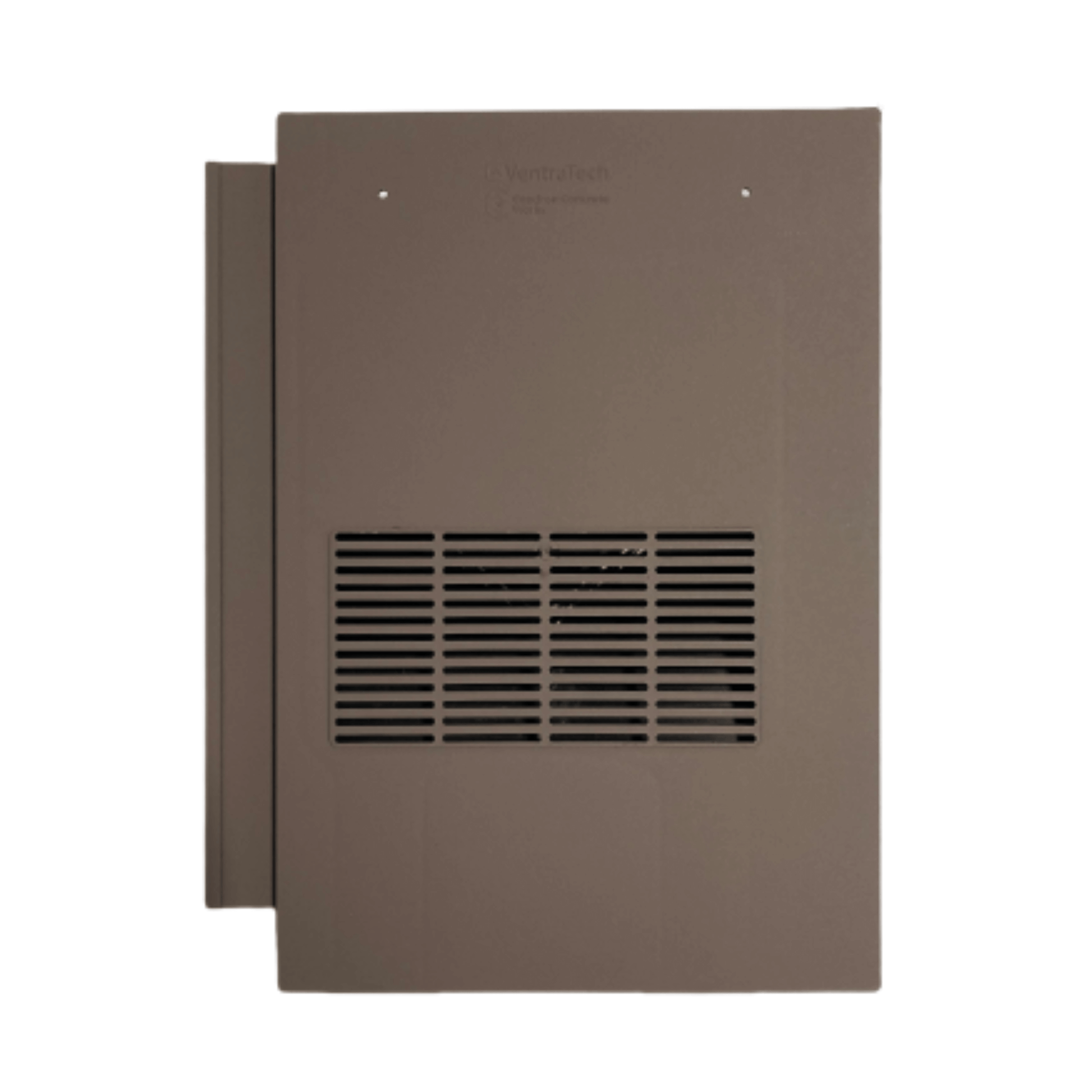

Beddoes Products Inline Marley Edgemere Vent Tile Brown - Smooth

Beddoes Products Inline Marley Edgemere Vent Tile


Inline Marley Edgemere Vent Tile

The Beddoes Products Inline Marley Edgemere Vent Tile has a simple structure to match standard roof tiles. Sleek design ensures the vent is almost invisible from ground level. Water entering the vent flows back out onto the roof.


Marley Edgemere

Lagan Galloway

Length - 420 mm
Width - 330 mm


The Beddoes Products Inline Marley Edgemere Vent Tile gives a discreet solution to 2 problems:

Ventilation of a roof space

A retrofit solution to condensation in the roof space.

Soil or mechanical extraction

A terminal for soil vent pipes or mechanical extraction units - most commonly bathroom extraction.

Airflow resistance charts are available on request to check compatibility for other purposes.


    Installation is simple.

    Product fitting instructions included.

    Download edgemere / galloway fitting instructions (PDF)

    Country of Manufacture





    Single tile


    Upper cover containing a grille in the visible area of the tile.

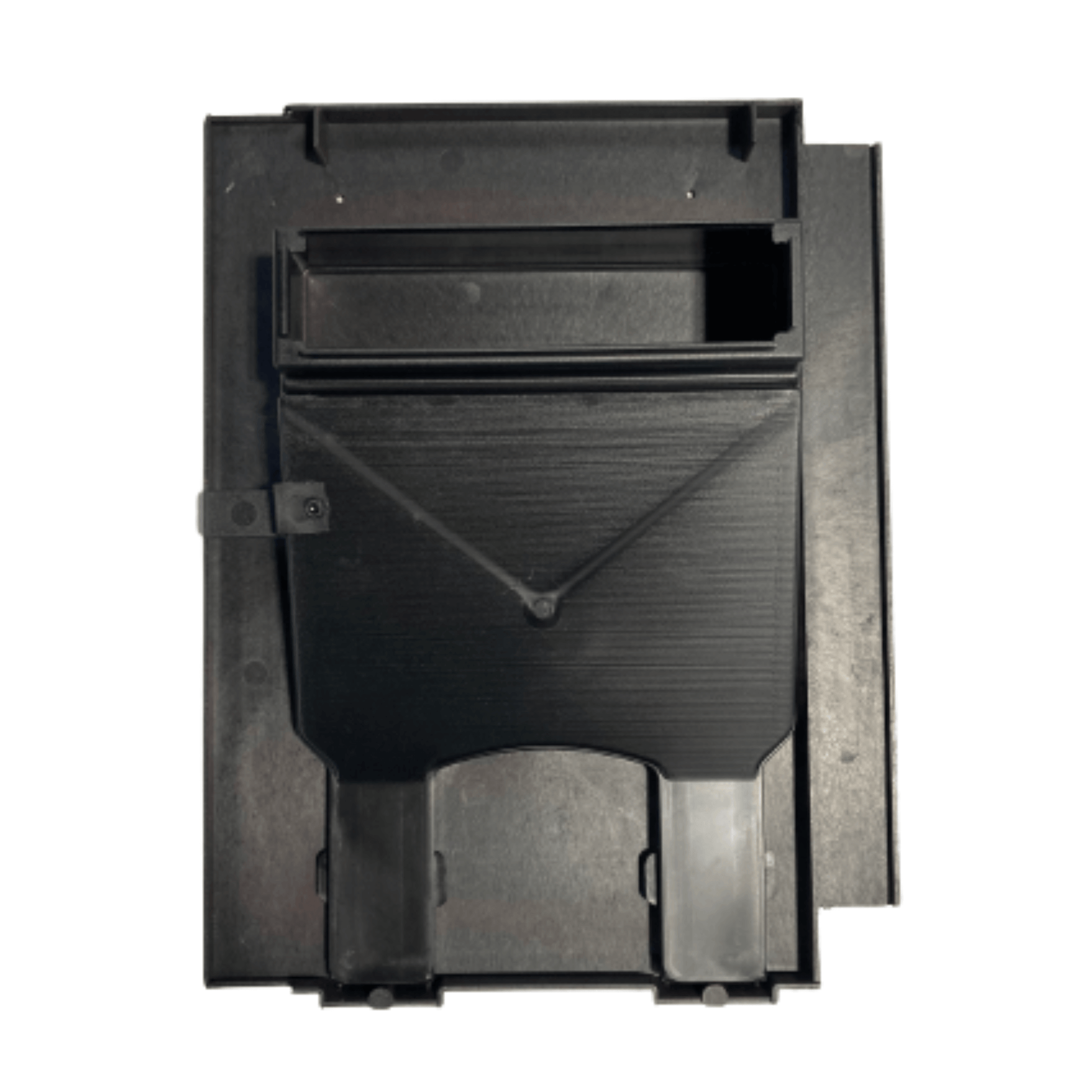

    An underbase collects and discharges rainwater back to the roof.
    The 4mm grille allows an airflow capacity of 10,000mm² per unit.

    The grille also acts as an insect screen and a baffle against wind-driven rain.

    Roof Pitches

    Over 22.5 degrees.

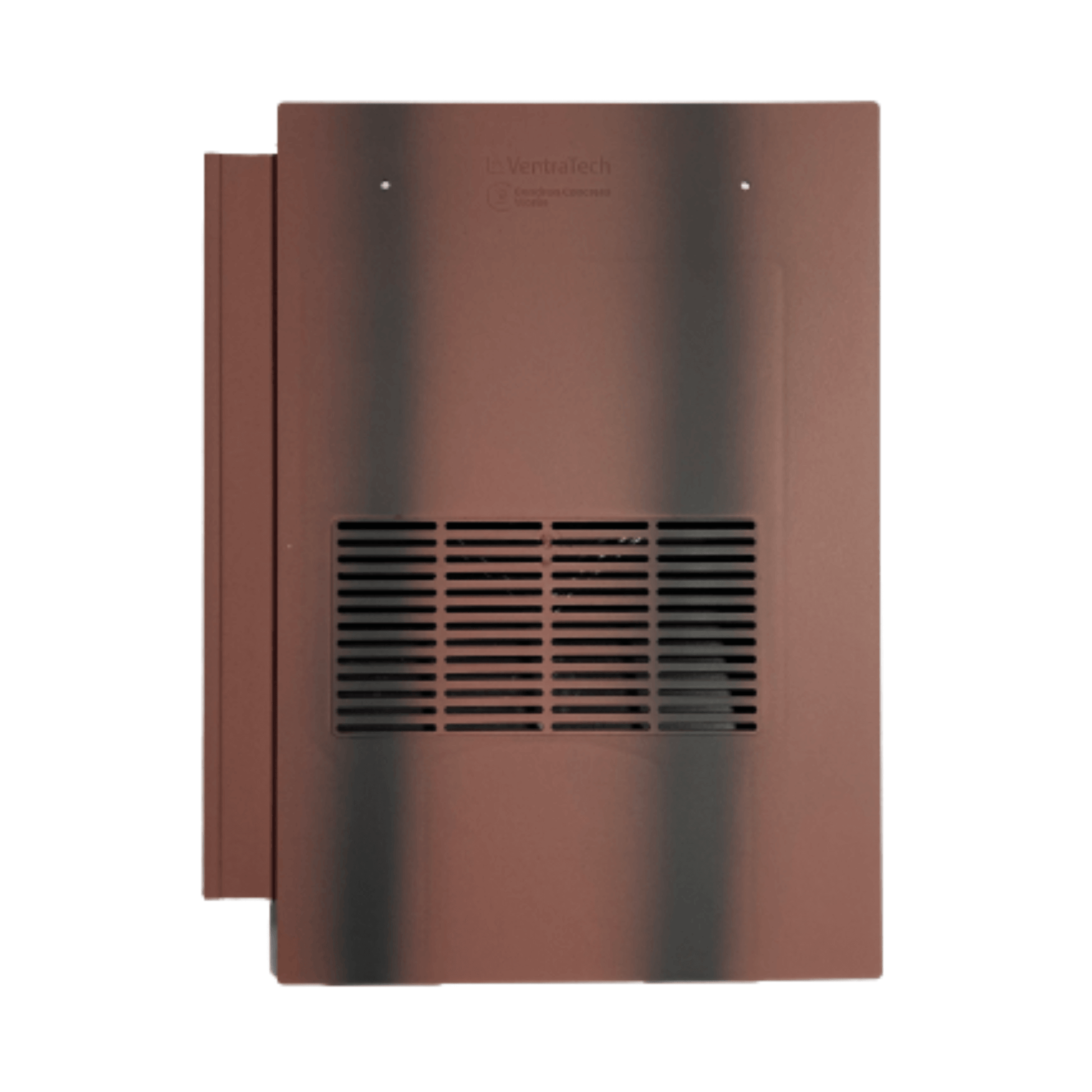

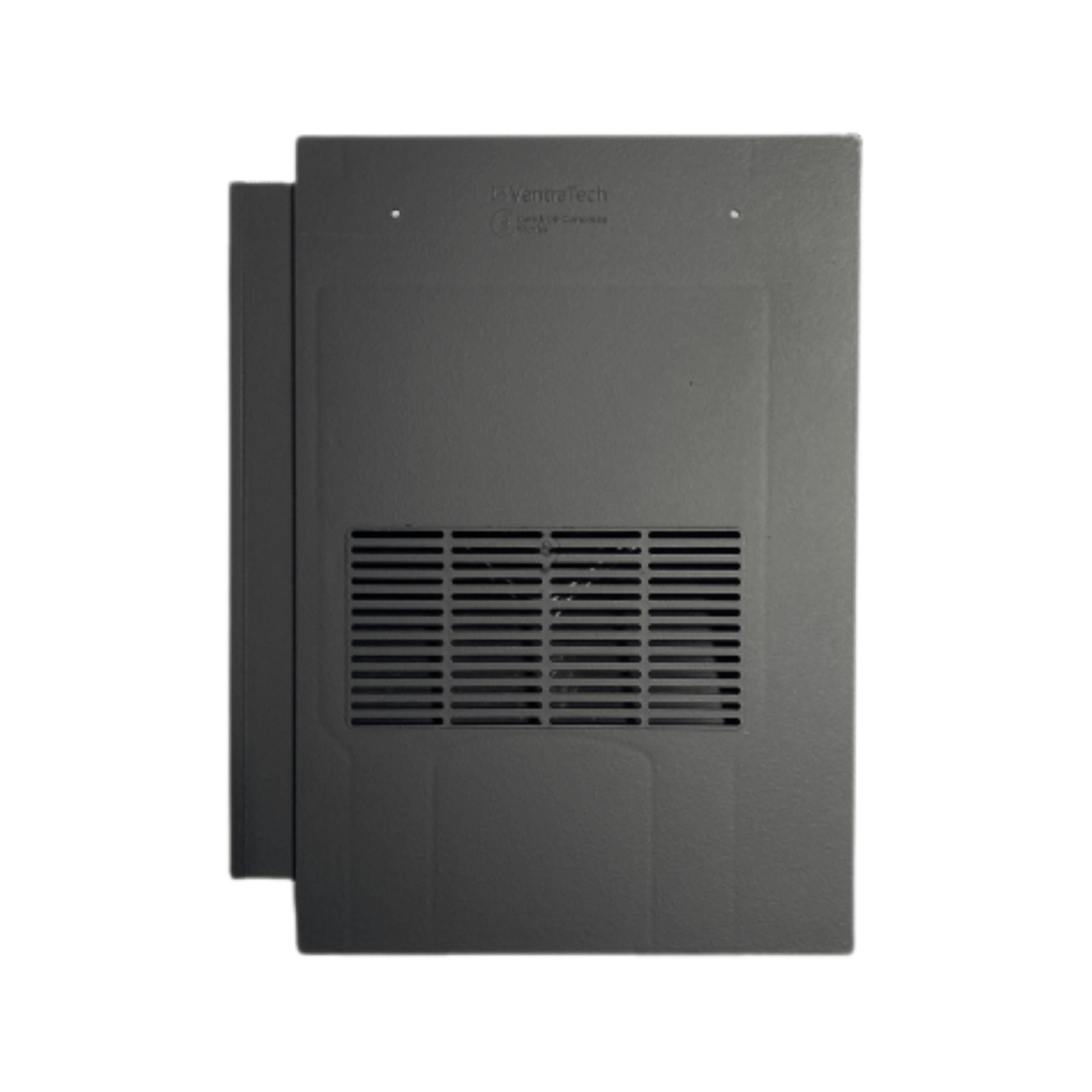

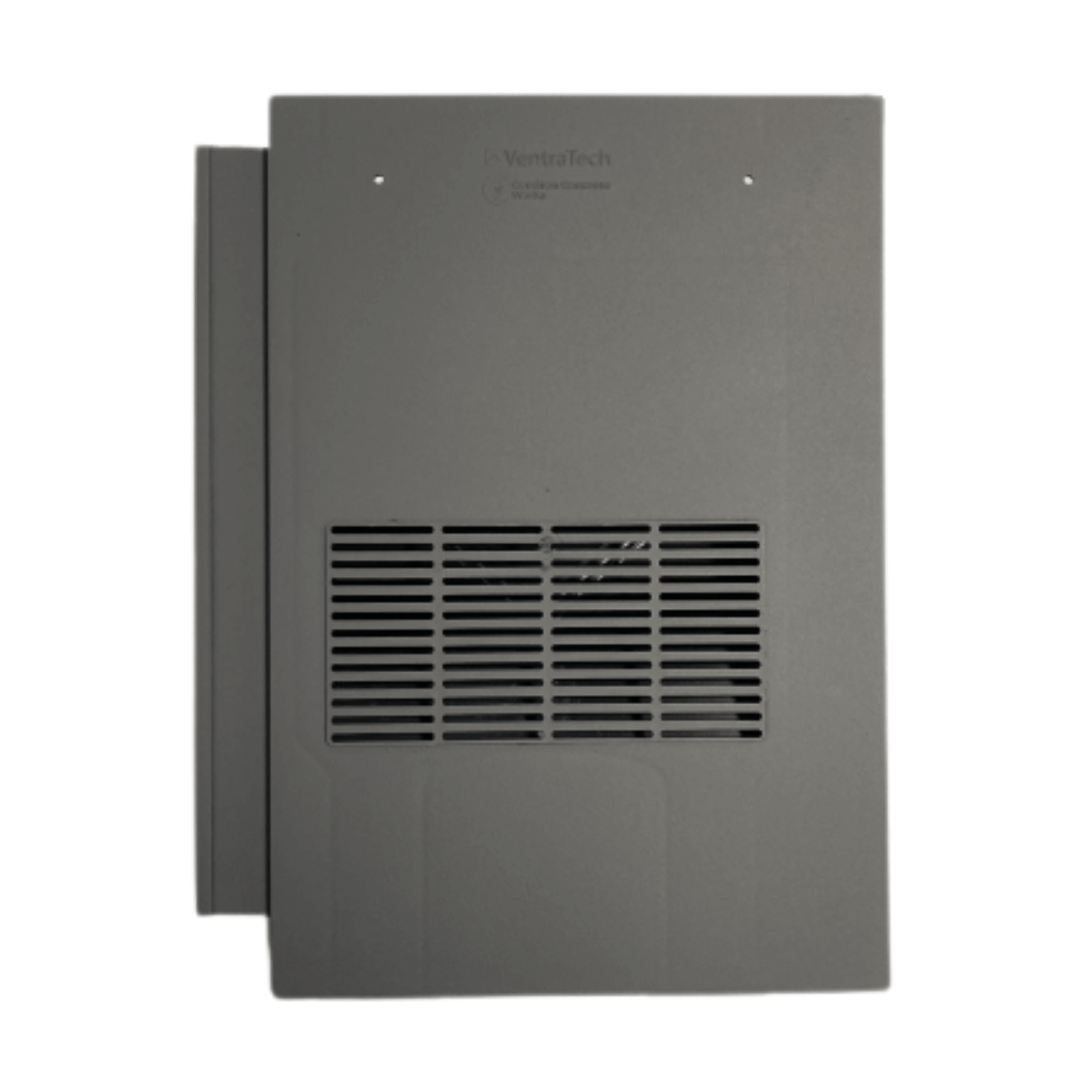

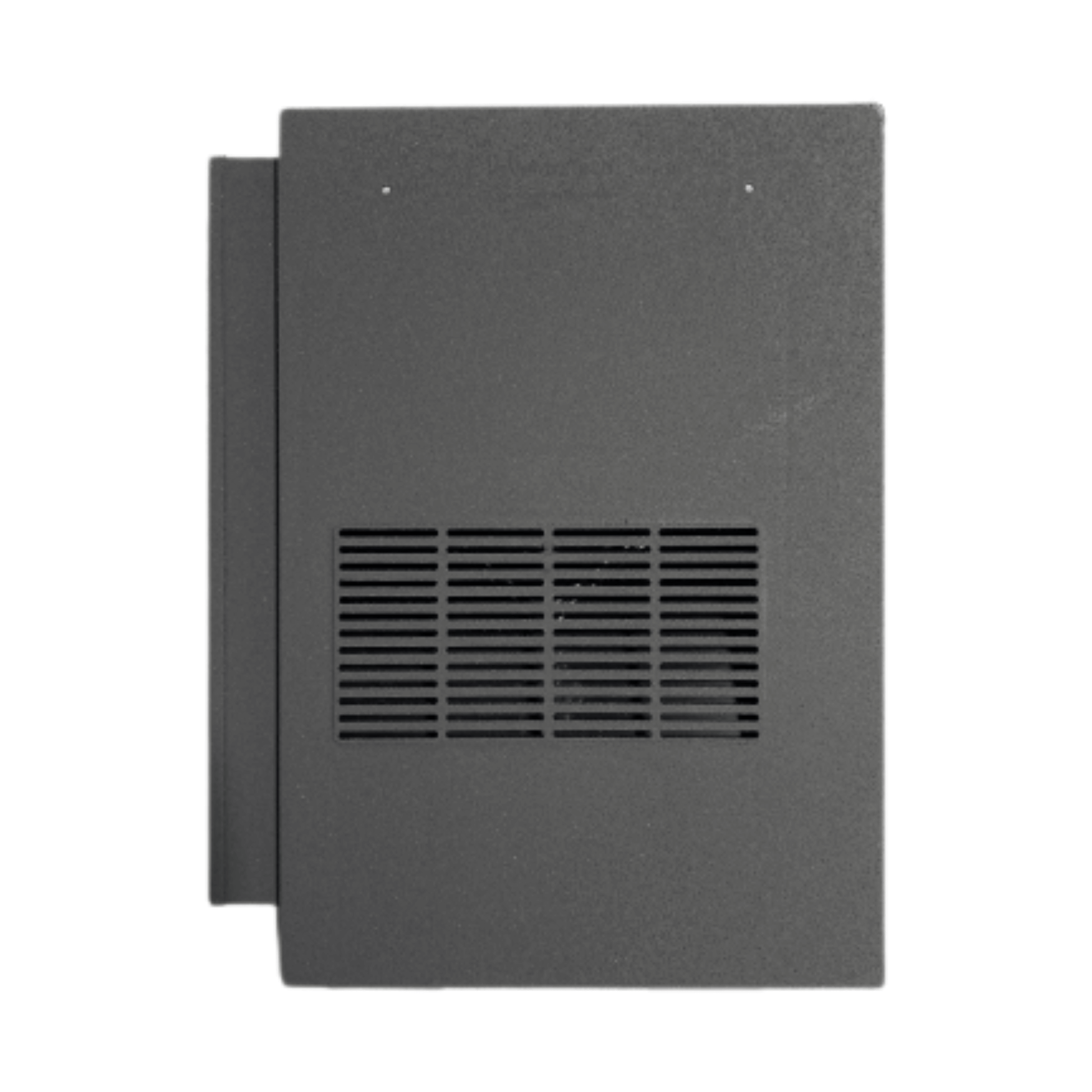

    You can select your colour from the colour drop down menu.

    You can request a colour match by email to or phone on 07977748593.


    Vent Only

    Suitable for situations where only ventilation is required. If you aren’t connecting to any pipe work now or in the future, the ‘vent only’ option is all you require.

    Vent + Pipe Adaptor

    The pipe adaptor has a 110mm diameter and connects the roof tile vent to extraction units via existing pipe work.

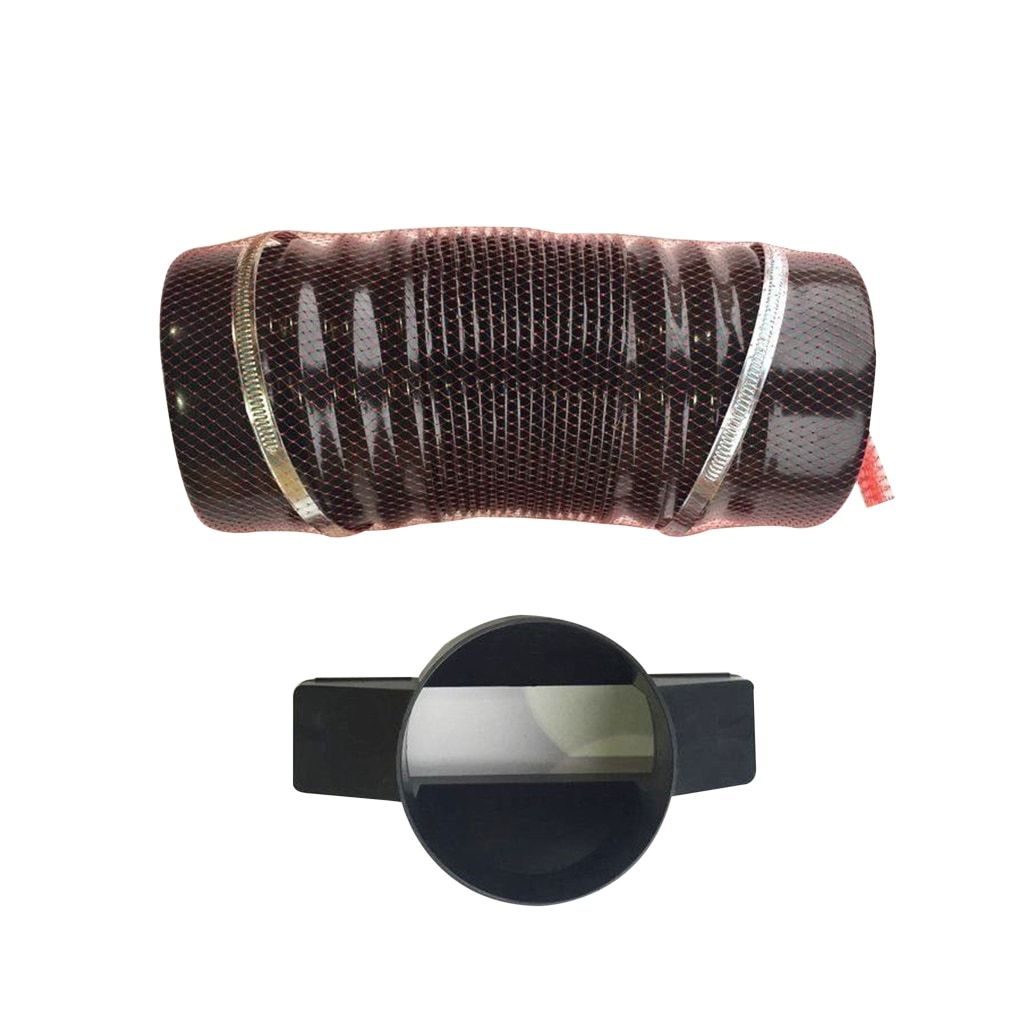

    Vent + Pipe Adaptor + Flexible Pipe

    The flexible pipe provides a high quality flexible connection between the roof tile vent and existing pipe work. It can extend between lengths of 250mm - 550mm. Adjustable ties allow diameters between 120mm - 77mm.
