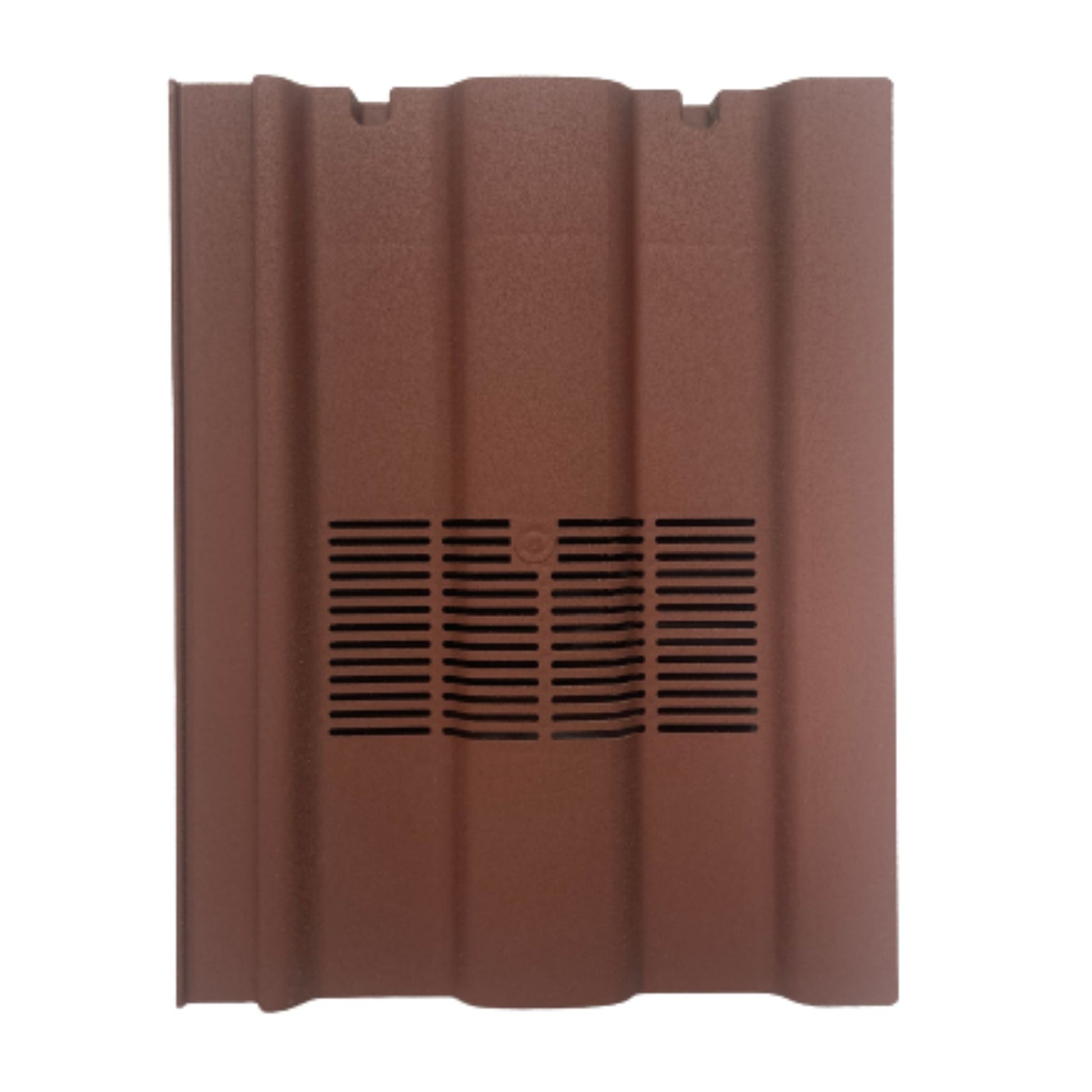

Beddoes Products Inline Marley Ludlow Major Vent Tile
Protect your home from damp with the Beddoes Products Inline Marley Ludlow Major Vent Tile.
Stop loft condensation today — give yourself peace of mind tomorrow.
Get the job done and tick another thing off your to-do list!
The Best Way to Vent Your Home
- Installation - One vent replaces one tile
Colour matching - So your roof looks untouched
- Find the right product - Follow the steps below
Delivery - Free on all orders
- Returns - Free 30-day returns (no questions asked!)
The Problem with Roof Ventilation
Everything you do at home generates heat. And all that heat rises through the ceilings into your loft.
So your loft needs to breathe.
You would think that’s a built-in feature. But it’s not.
On older houses, the roof was installed with a breathable membrane or nothing at all. And the effectiveness of both options is questionable.
The Solution? — The Marley Ludlow Major Vent Tile
The Beddoes Products Inline Marley Ludlow Major Vent Tile is a simple solution for roof ventilation.
You can even connect your bathroom extractor fan or soil vent pipe. Just add a pipe adaptor.
Choosing Your Product
Nobody likes returns. So we help you choose the right product by giving as much product information as possible.
The Beddoes Products Inline Marley Ludlow Major Vent Tile is compatible with:
Marley Ludlow Major
- Length - 420 mm
- Width - 330 mm
Maximum overlap - 90 mm
Choosing Your Package

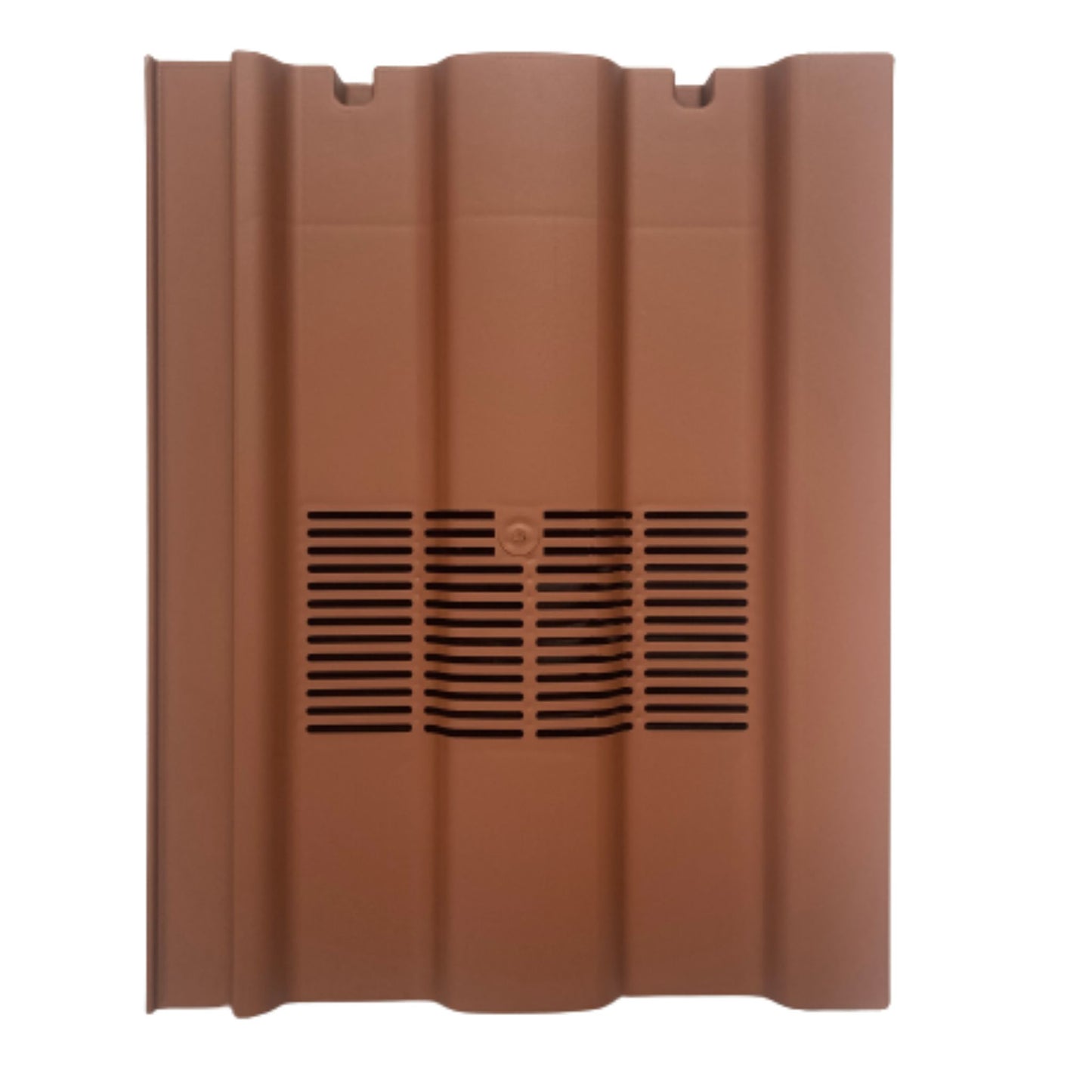

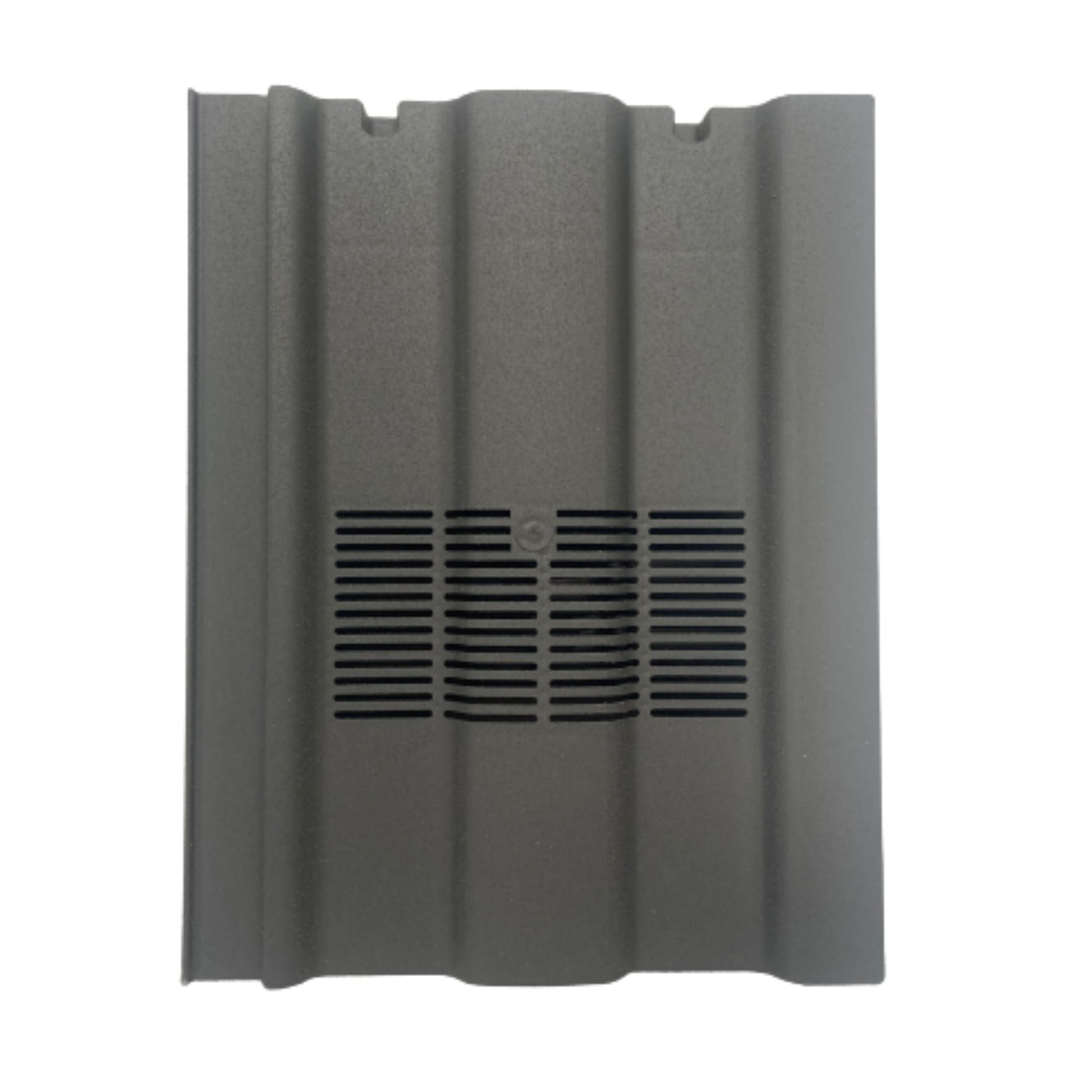

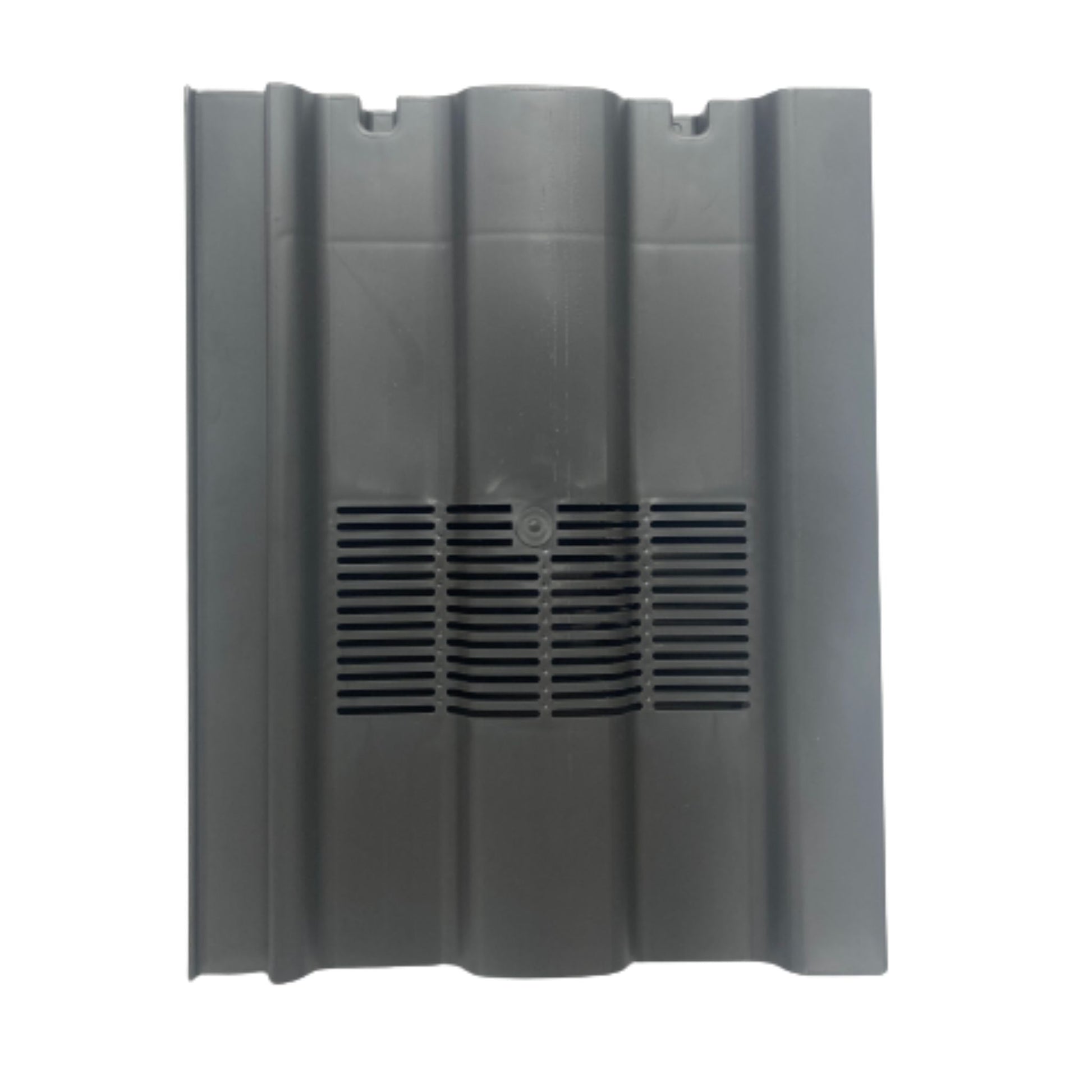

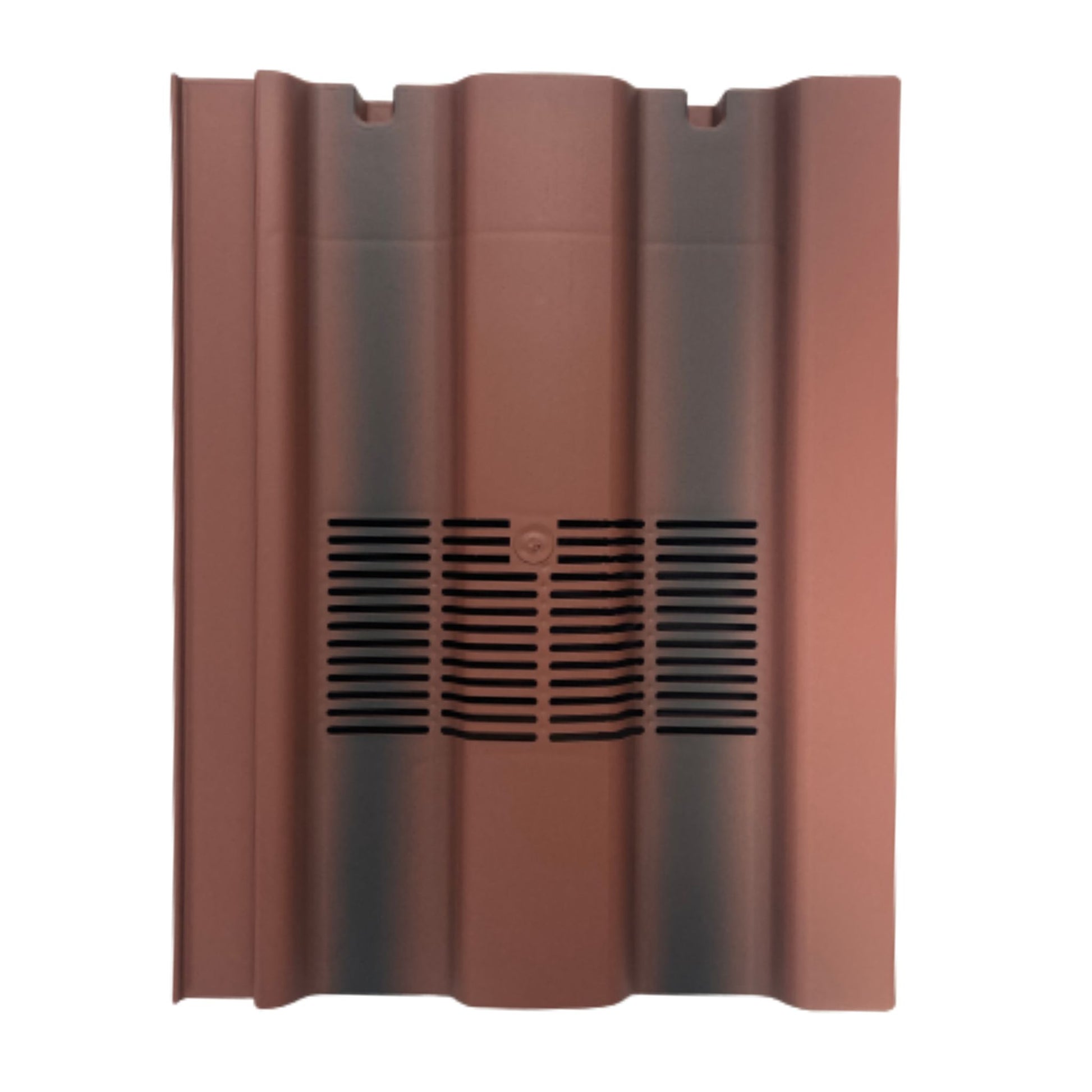

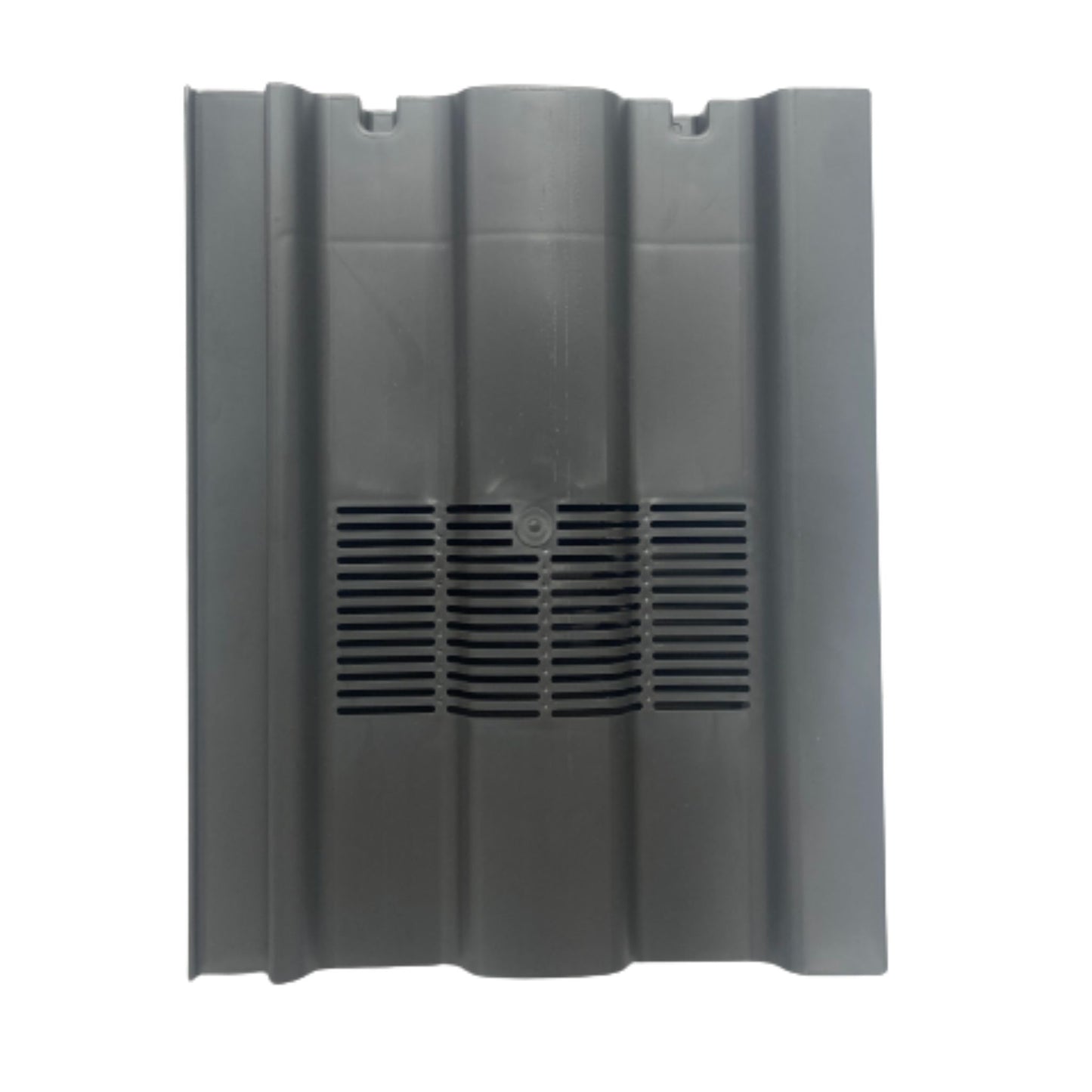

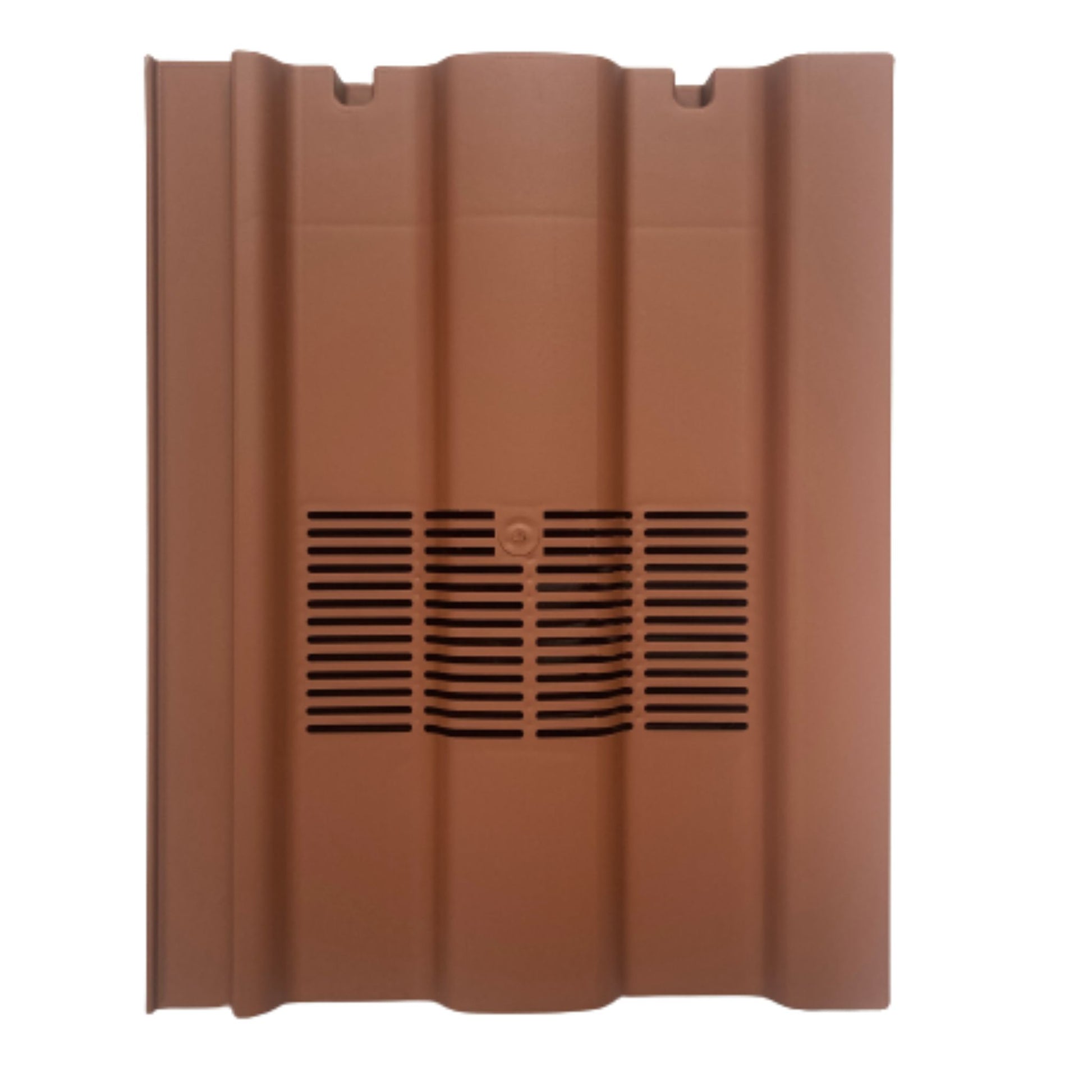

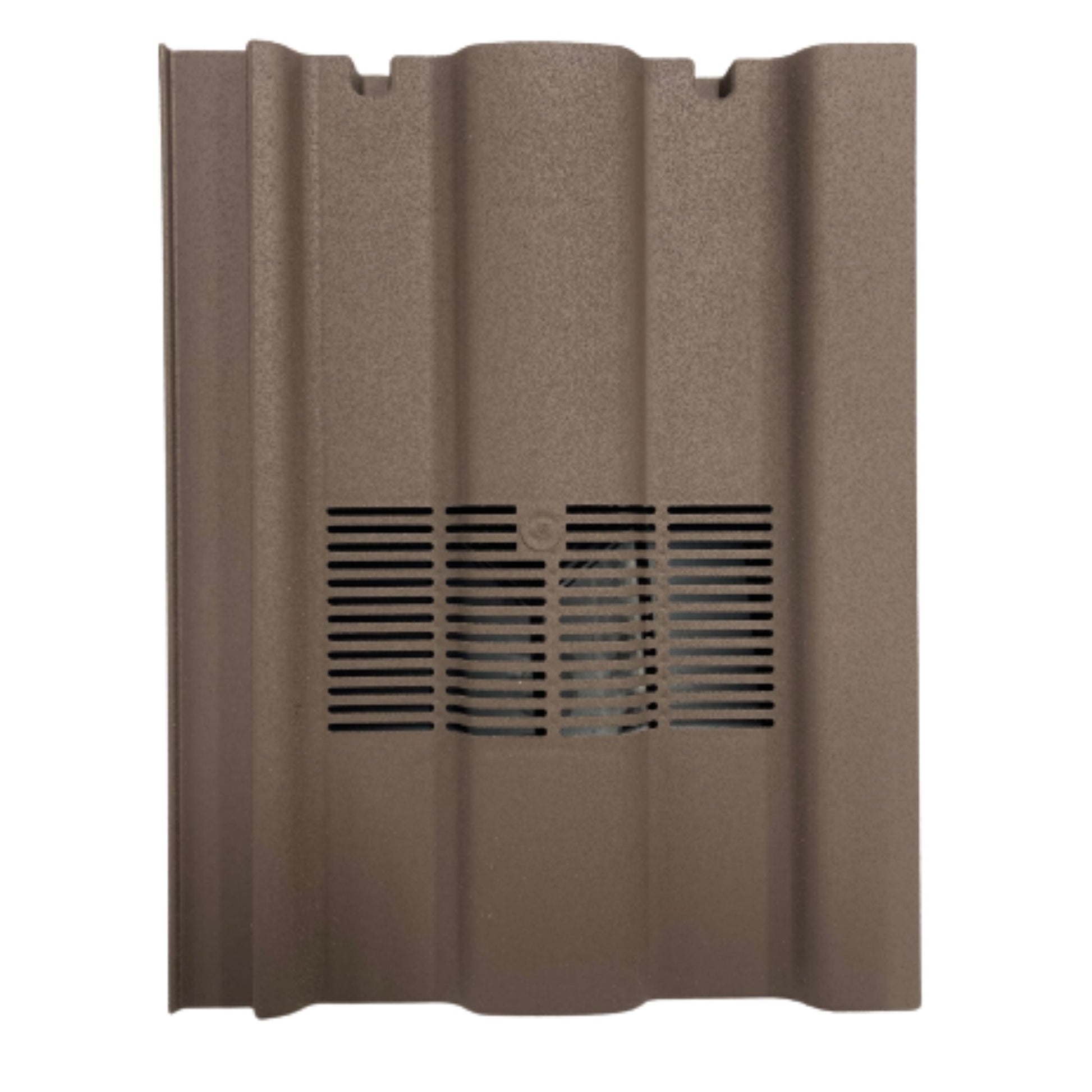

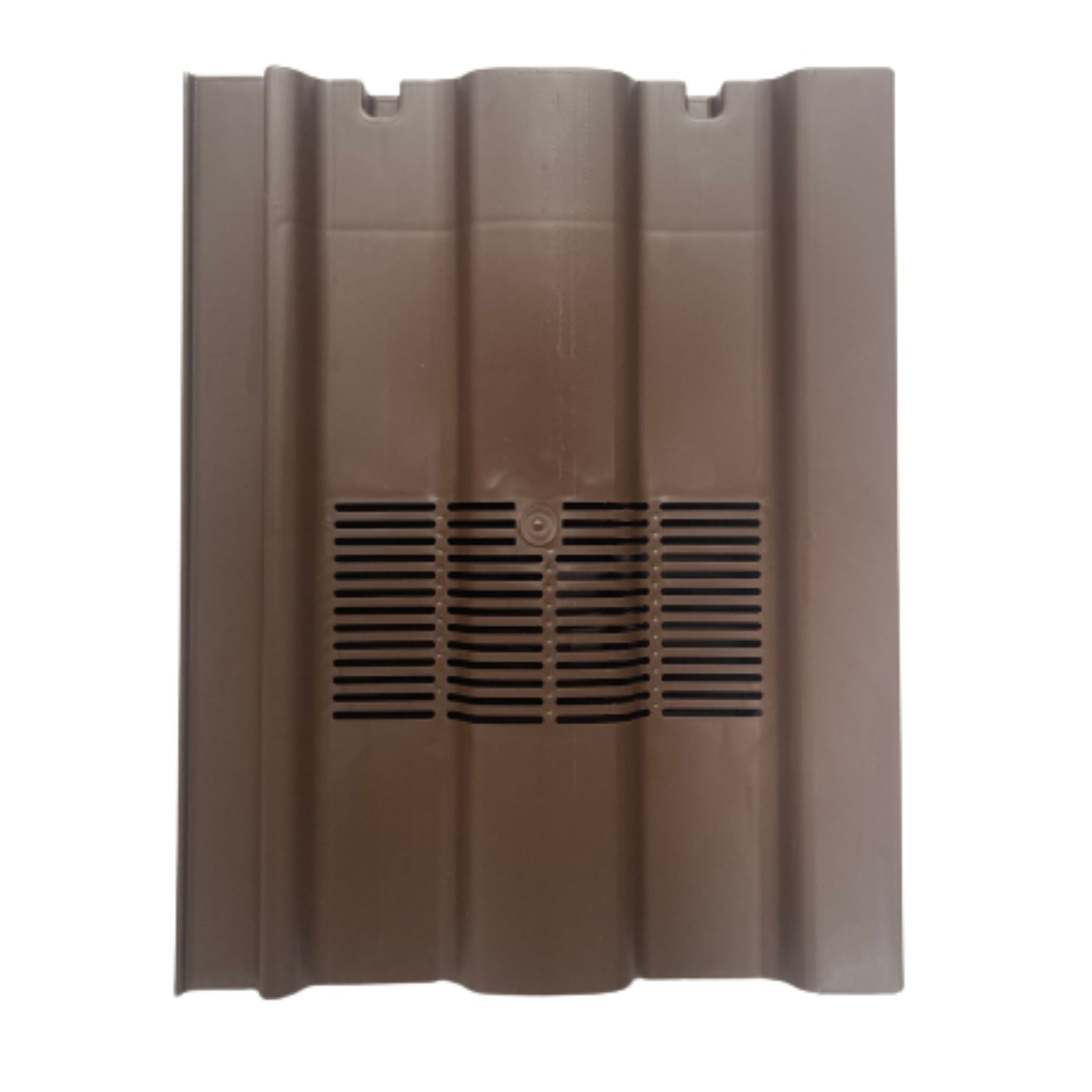

You can select your colour from the colour drop down menu.
You can request a colour match by email to email@example.com.
Suitable for situations where only ventilation is required. If you aren’t connecting to any pipework now or in the future, the ‘vent only’ option is all you require.
Vent + Pipe Adaptor
The pipe adaptor has a 110mm diameter and connects the roof tile vent to extraction units via existing pipework.
Vent + Pipe Adaptor + Flexible Pipe
The flexible pipe provides a high-quality flexible connection between the roof tile vent and existing pipework.
It extends between lengths of 250mm - 550mm. Adjustable ties allow diameters between 120mm - 77mm.
What's It For?
A Beddoes Products Inline Marley Ludlow Major Vent Tile gives an almost-invisible solution to 2 problems:
- Ventilation of a roof space
A retrofit solution to condensation in the roof space.
- Soil or mechanical extraction
A terminal for soil vent pipes or mechanical extraction units - most commonly bathroom extraction.
Airflow resistance charts are available on request to determine the suitability of the product when used in conjunction with extraction units.
How Do You Install It?
Installation is simple.
Product fitting instructions included.
Download Marley Ludlow Major Vent Tile fitting instructions (PDF)
The Technical Part
- UK designed and manufactured
- Made from thermoplastic
- Single tile format

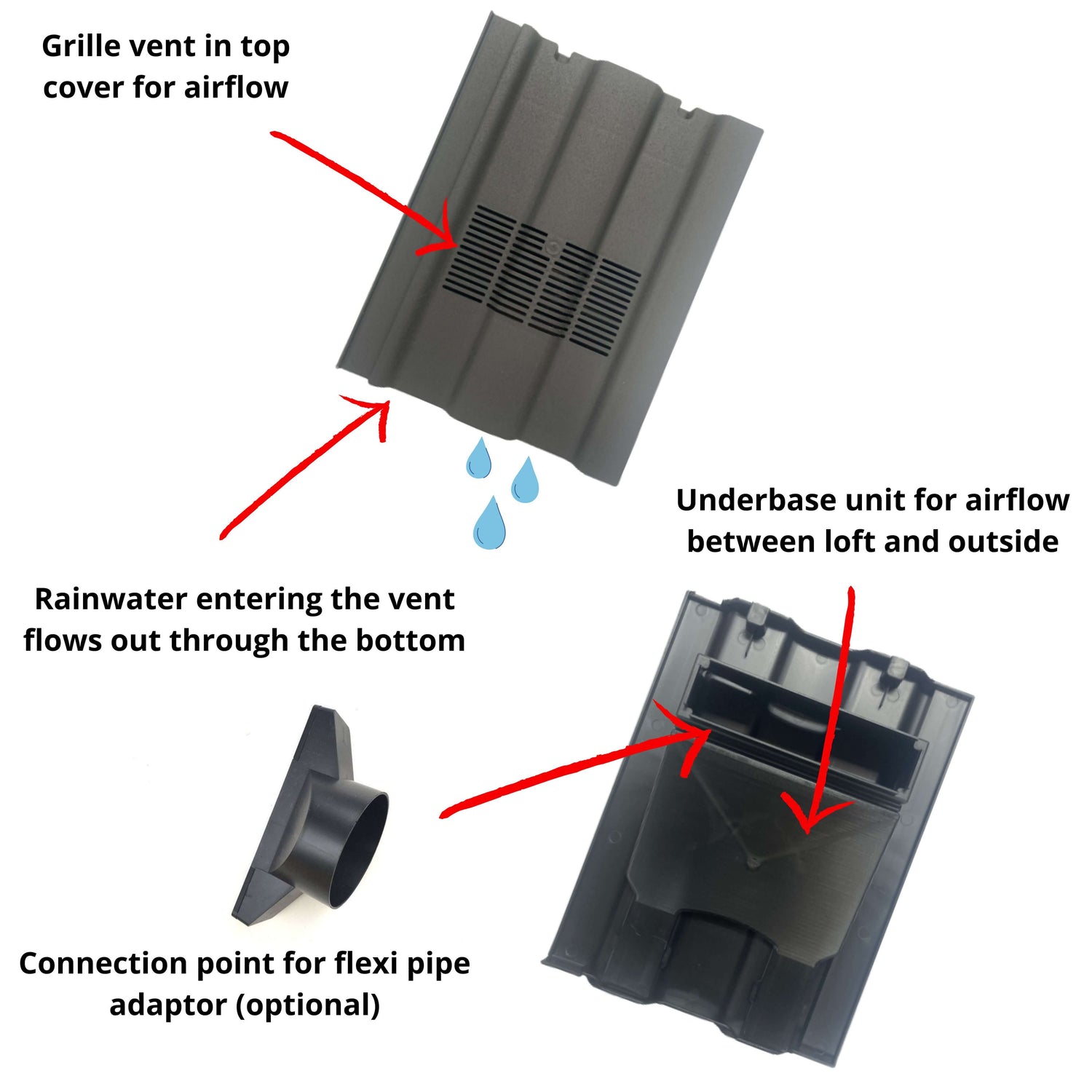

- Upper cover containing a grille in the visible area of the tile

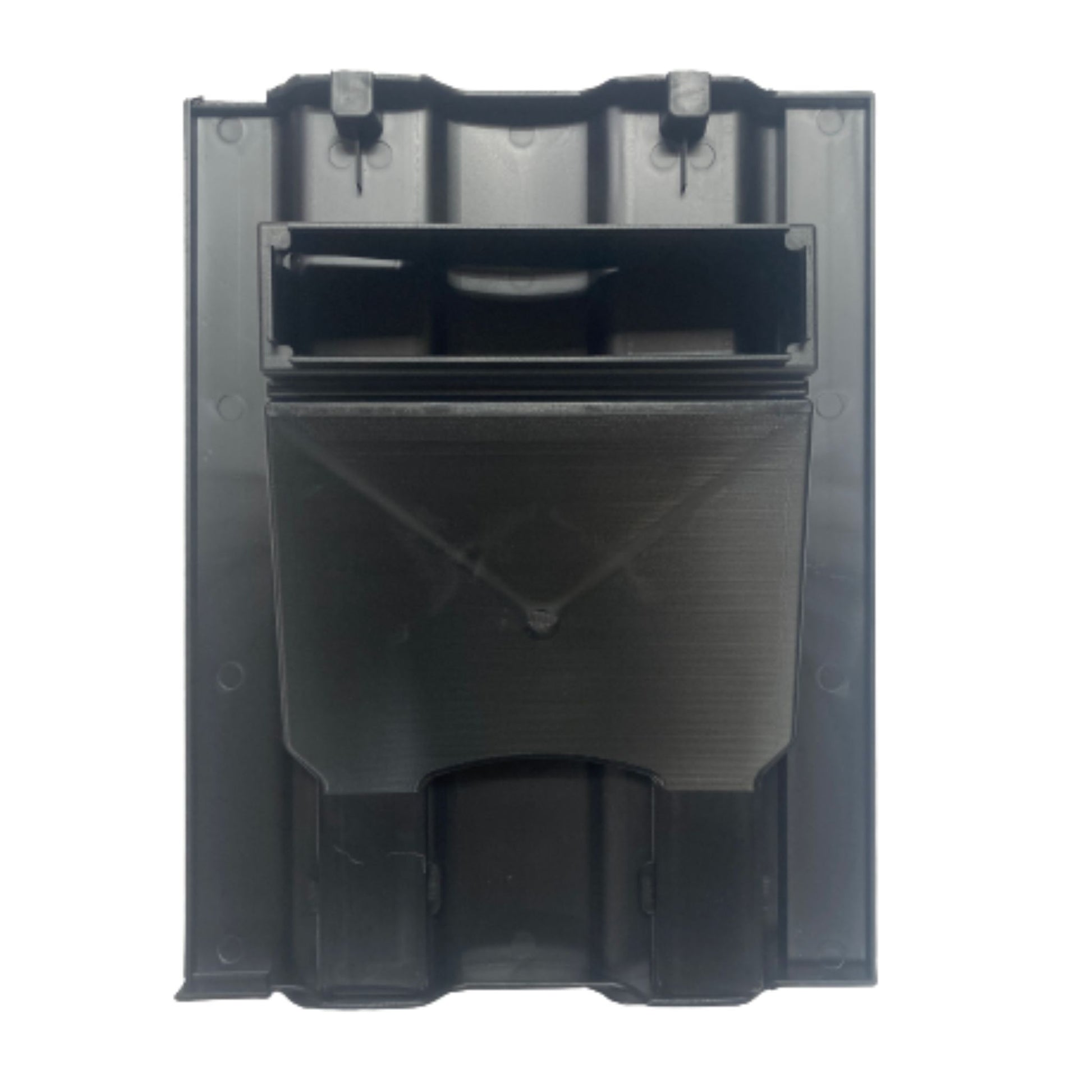

- An underbase collects and discharges rainwater back to the roof
- The 4mm grille allows an airflow capacity of 10,000mm² per unit
- The grille also acts as an insect screen and a baffle against wind-driven rain
- Minimum roof pitch - 22.5 degrees
