Beddoes Products Inline Redland 49 Vent Tile
Inline Redland 49 Vent Tile

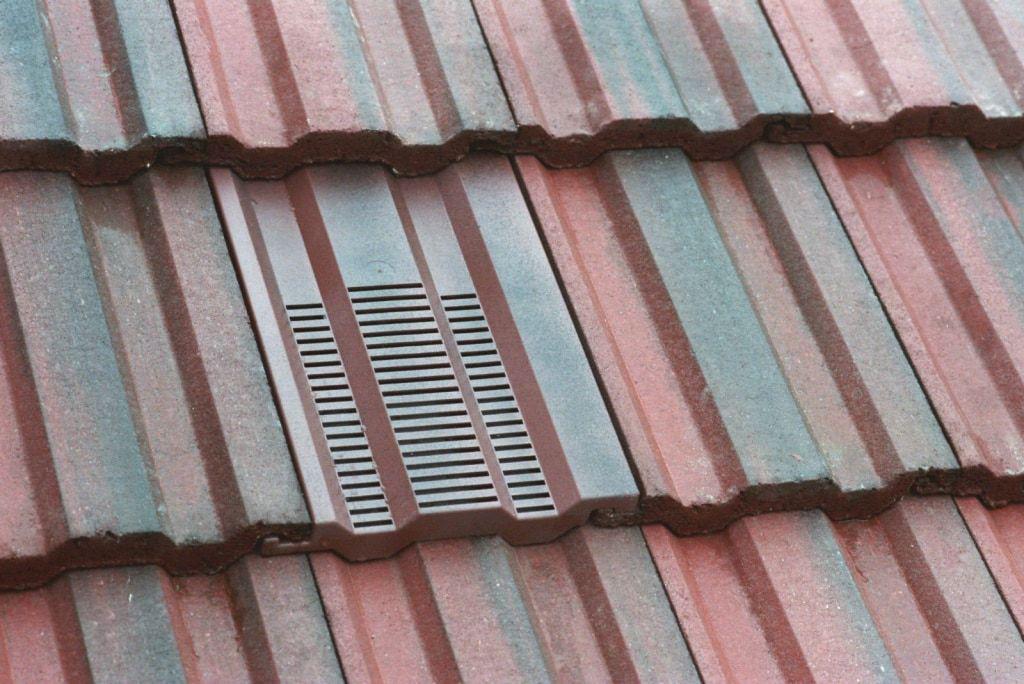

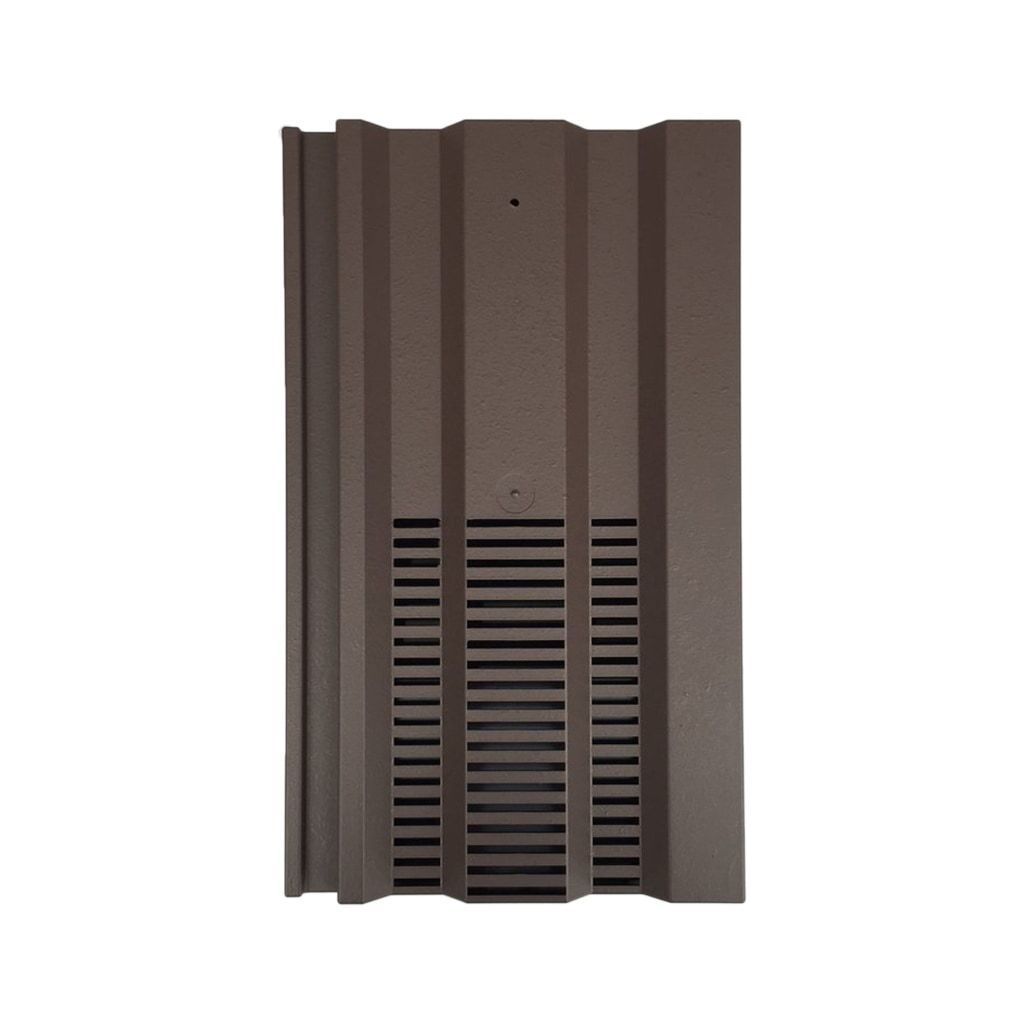

The Beddoes Products Inline Redland 49 Vent Tile provides a simple solution to problems of roofspace ventilation, mechanical extraction and soil stack termination. Sleek design ensures the vent is almost invisible from ground level. Water entering the vent flows back out onto the roof.
Compatibility
Redland 49, Marley Ludlow Plus, Forticrete V2, Sandtoft Standard Pattern.
Dimensions
Length - 385 mm
Width - 230 mm
Purpose
A Beddoes Products Inline Redland 49 Vent Tile gives a discreet solution to 2 problems:
Ventilation of a roof space
A retrofit solution to condensation in the roof space.
Soil or mechanical extraction
A terminal for soil vent pipes or mechanical extraction units - most commonly bathroom extraction.
Airflow resistance charts are available on request to check compatibility for other purposes.
Installation
Installation is quick and easy.
Replace 1 tile. No batten cutting required. Cut existing felt to the size of the vent throat and fold out.
Country of Manufacture
UK
Material
Thermoplastic
Format
Single tile
Features

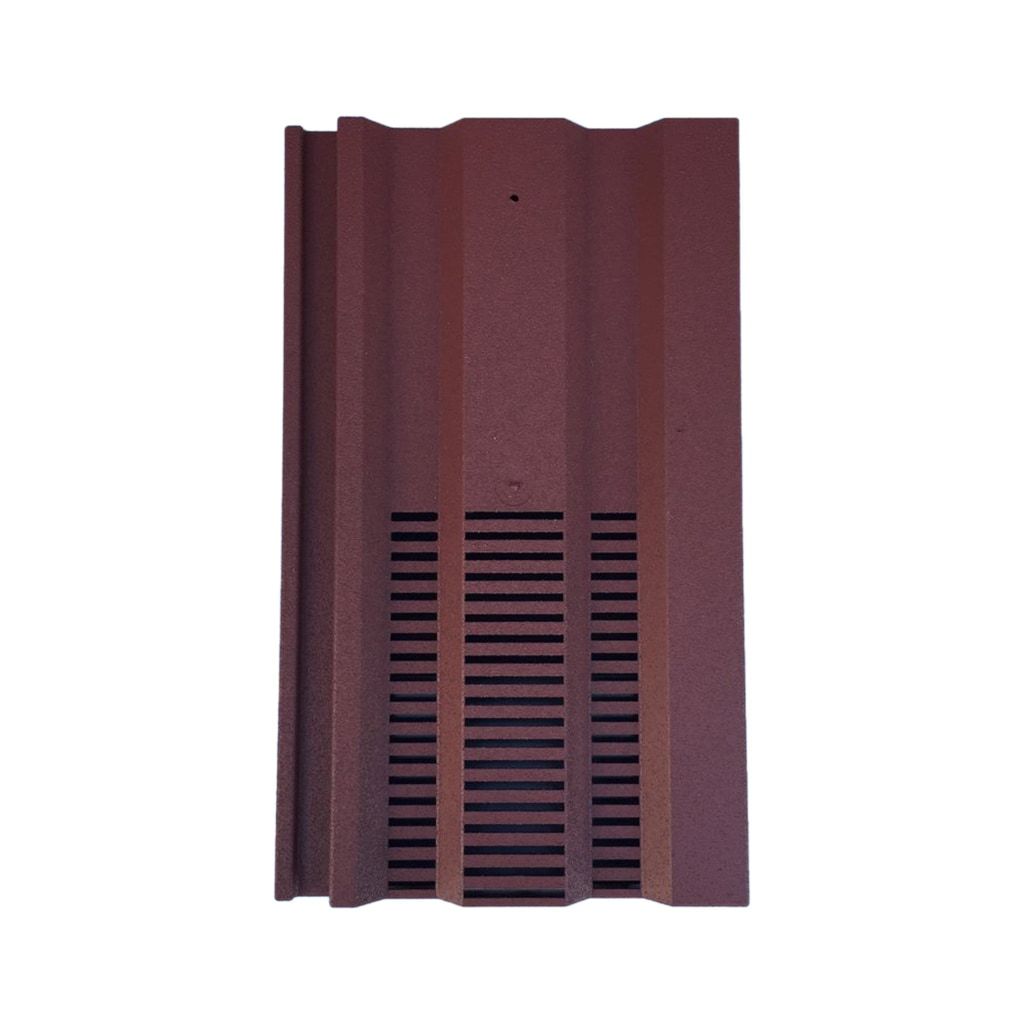

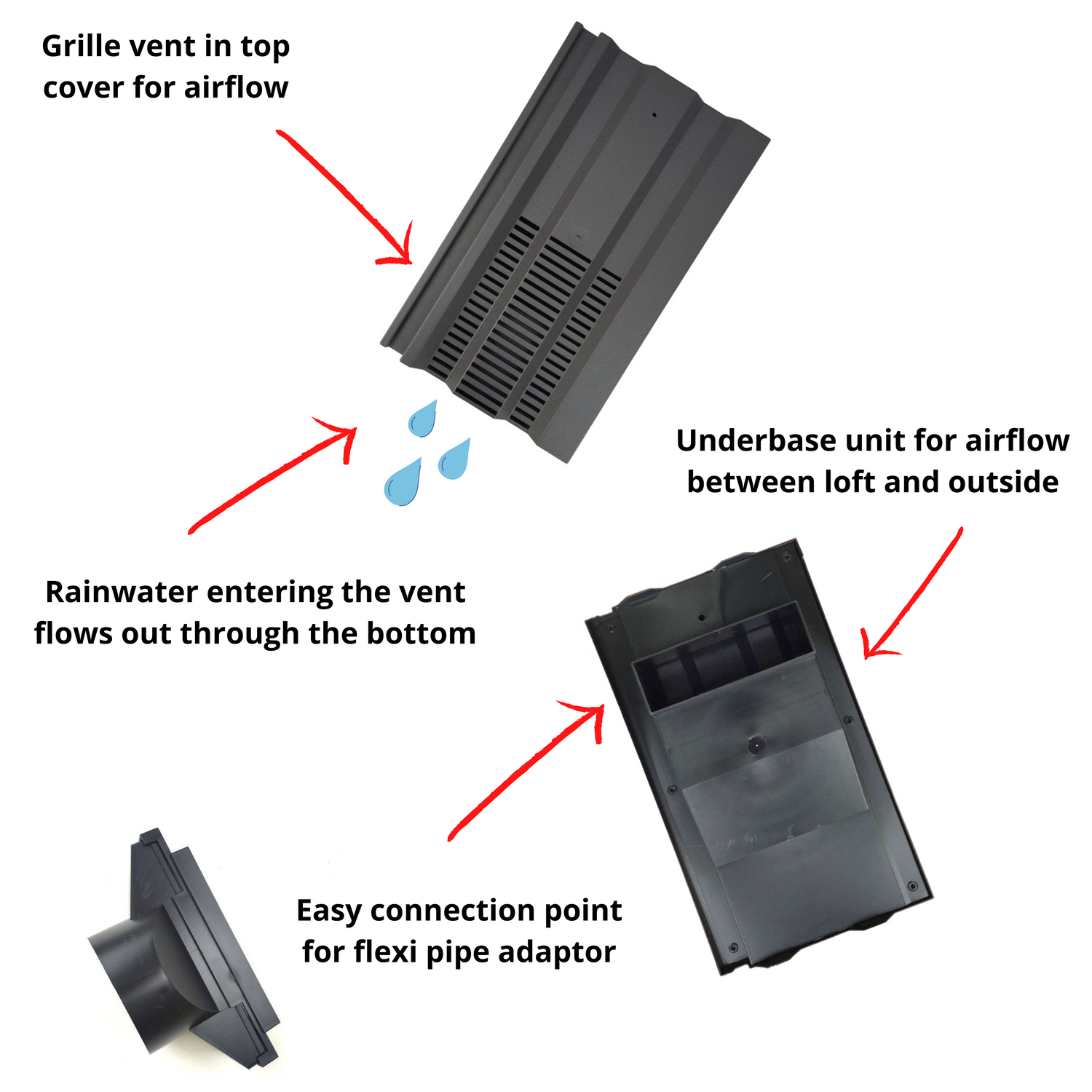

Upper cover, which has a grille formed within the visible area of the tile.

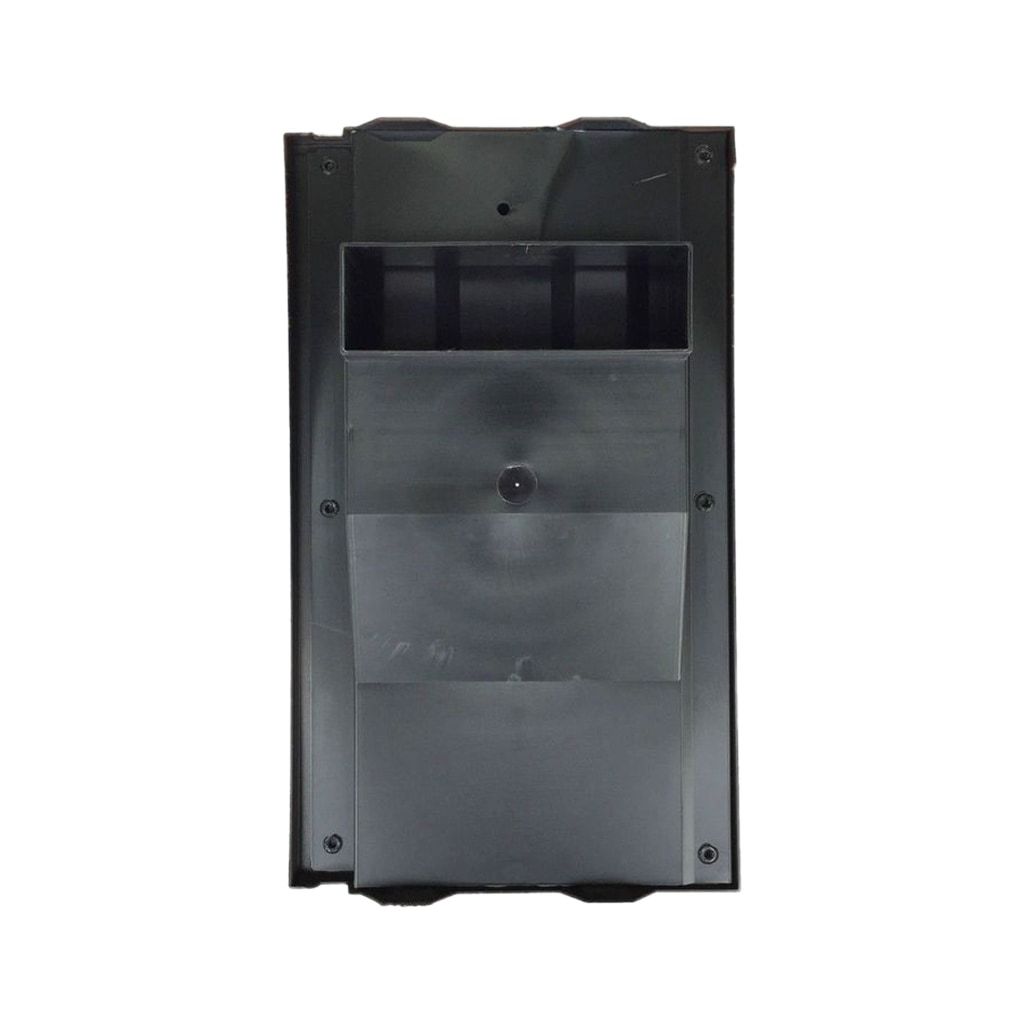

An underbase collects and discharges rainwater back to the roof.
The 4mm grille allows an airflow capacity of 7,500 mm² per unit.
Airflow resistance charts are available on request to determine suitability of the product when used in conjunction with extraction units.
Roof Pitches
Over 22.5 degrees.

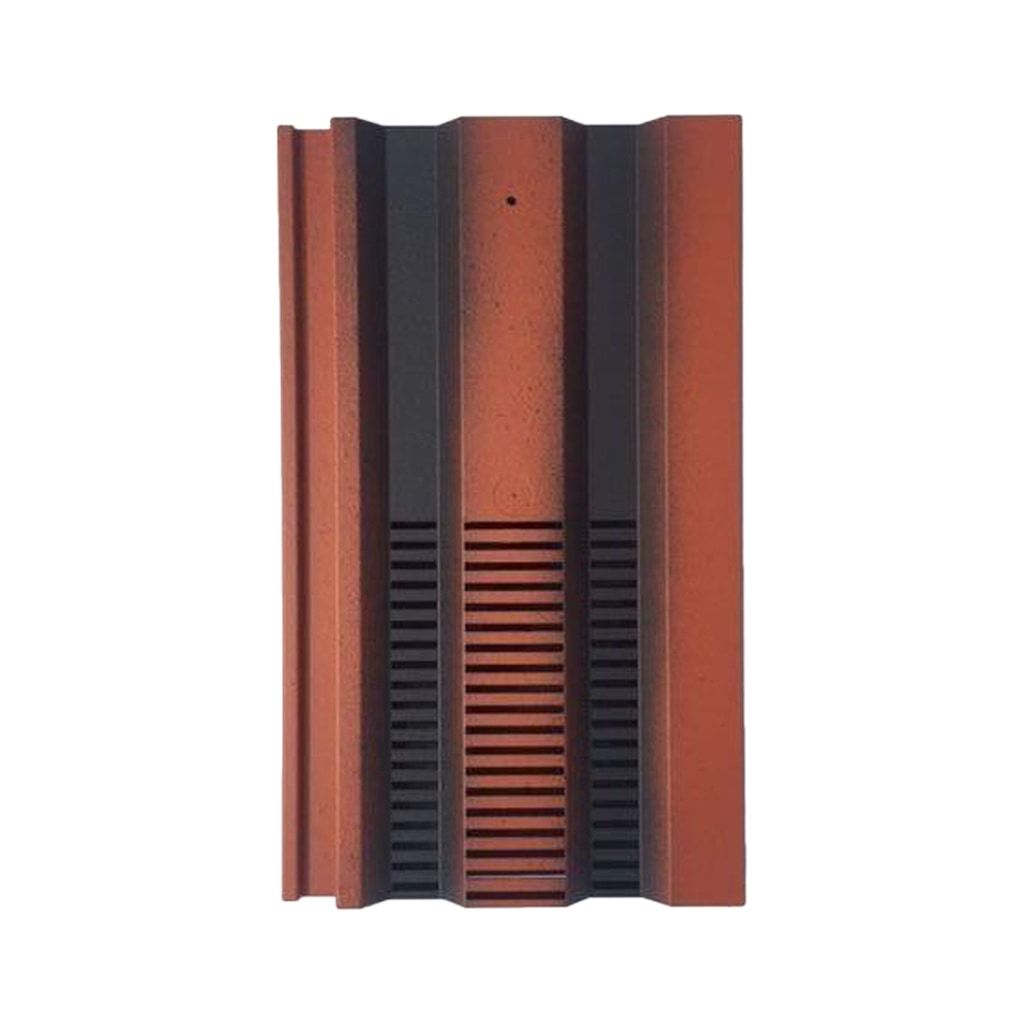

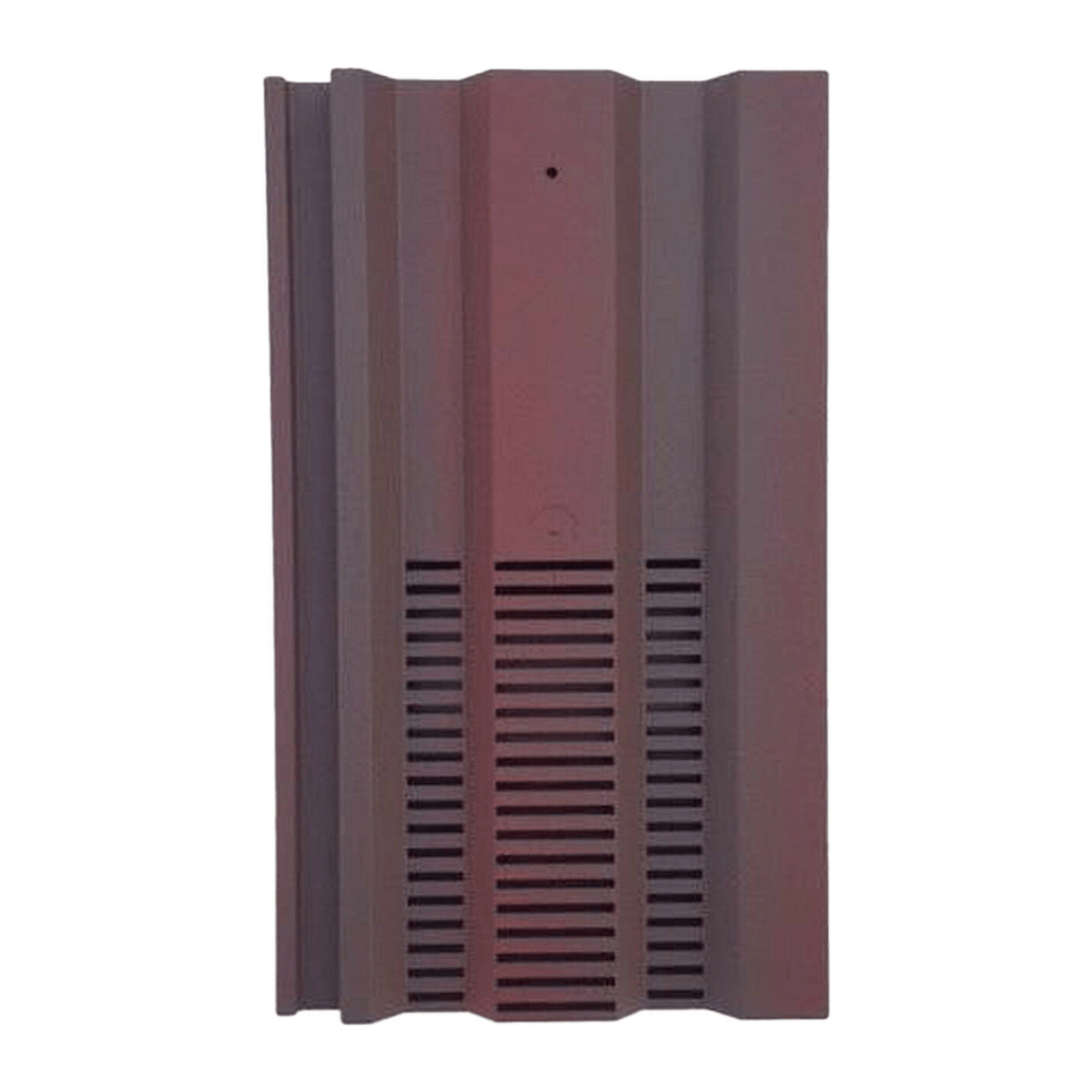

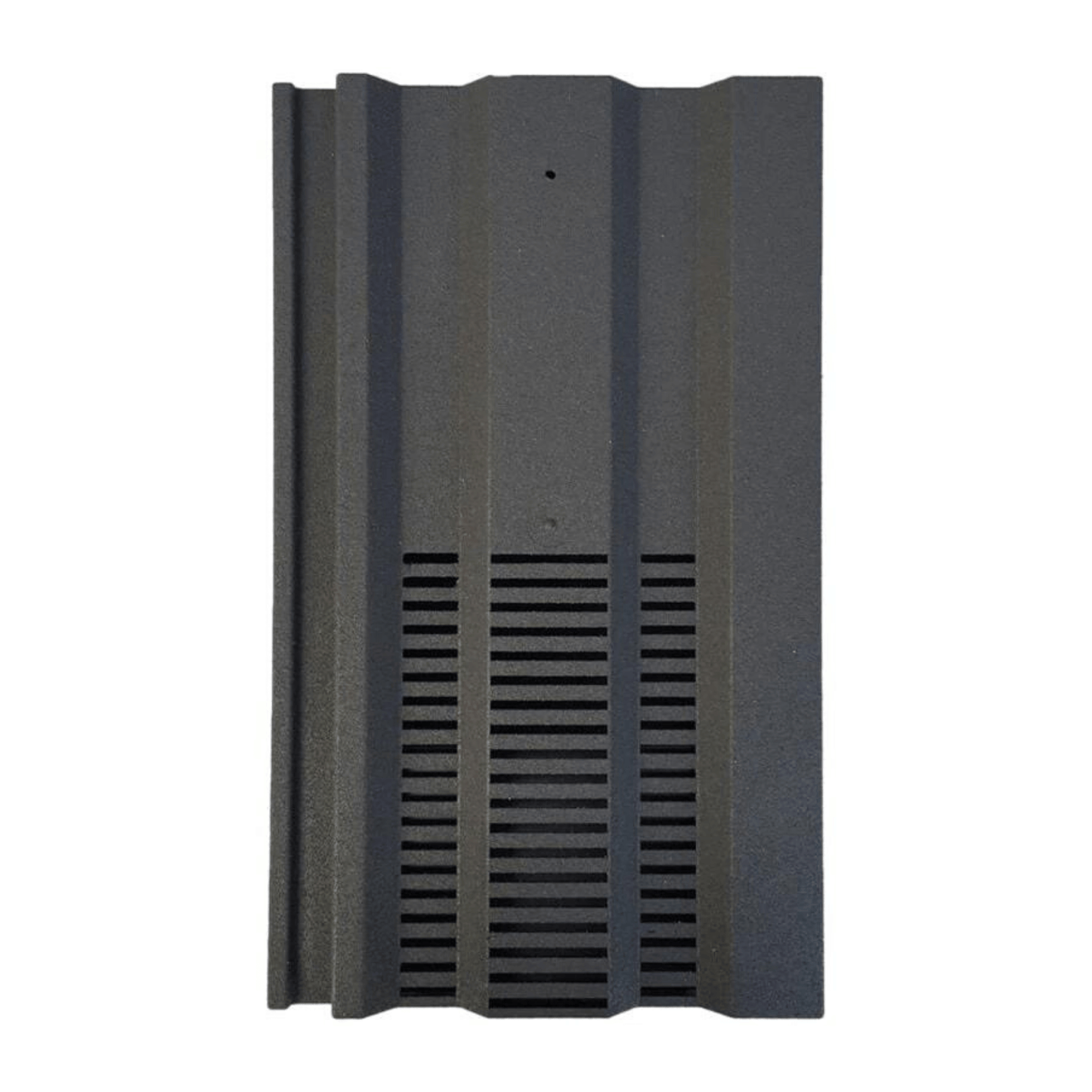

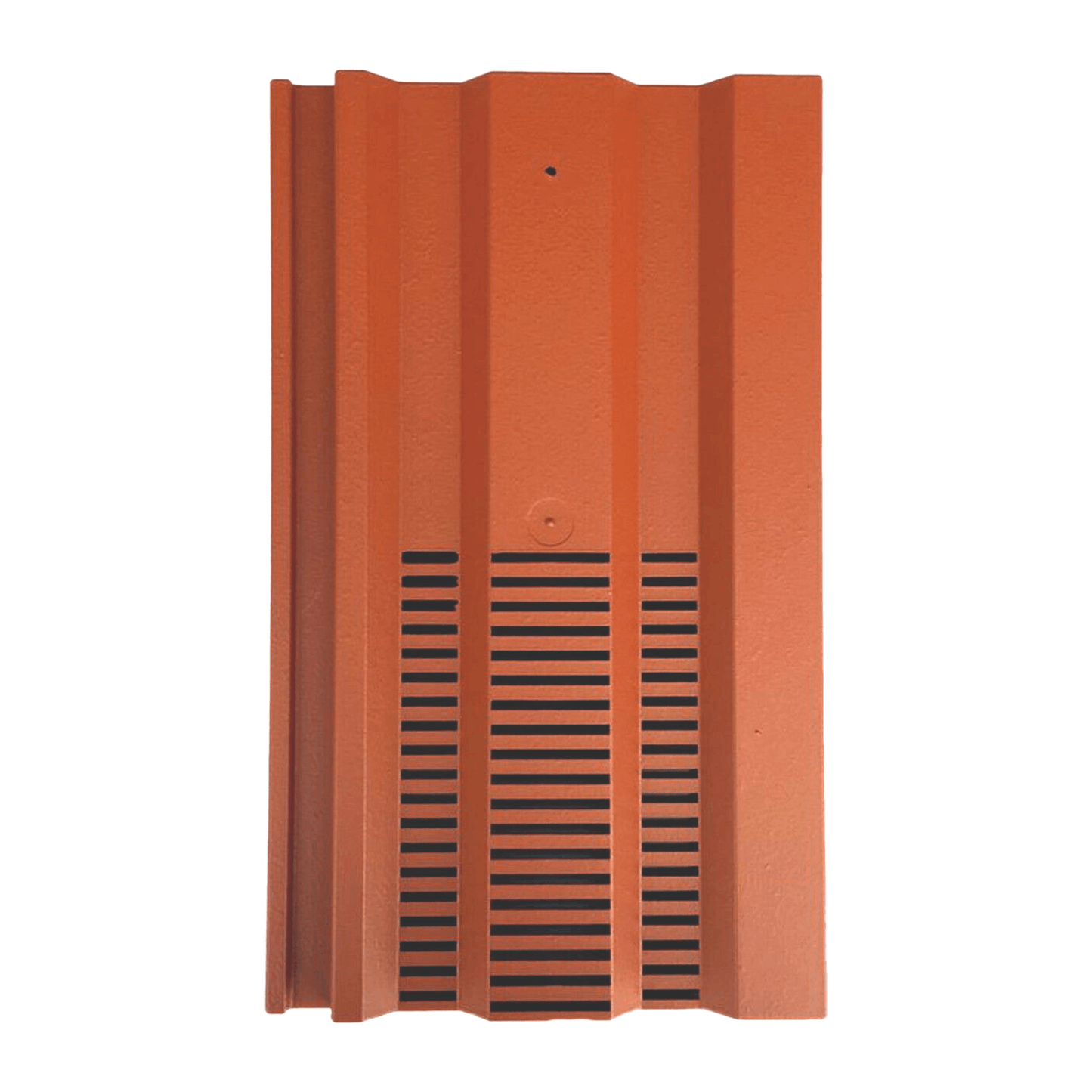

Colour

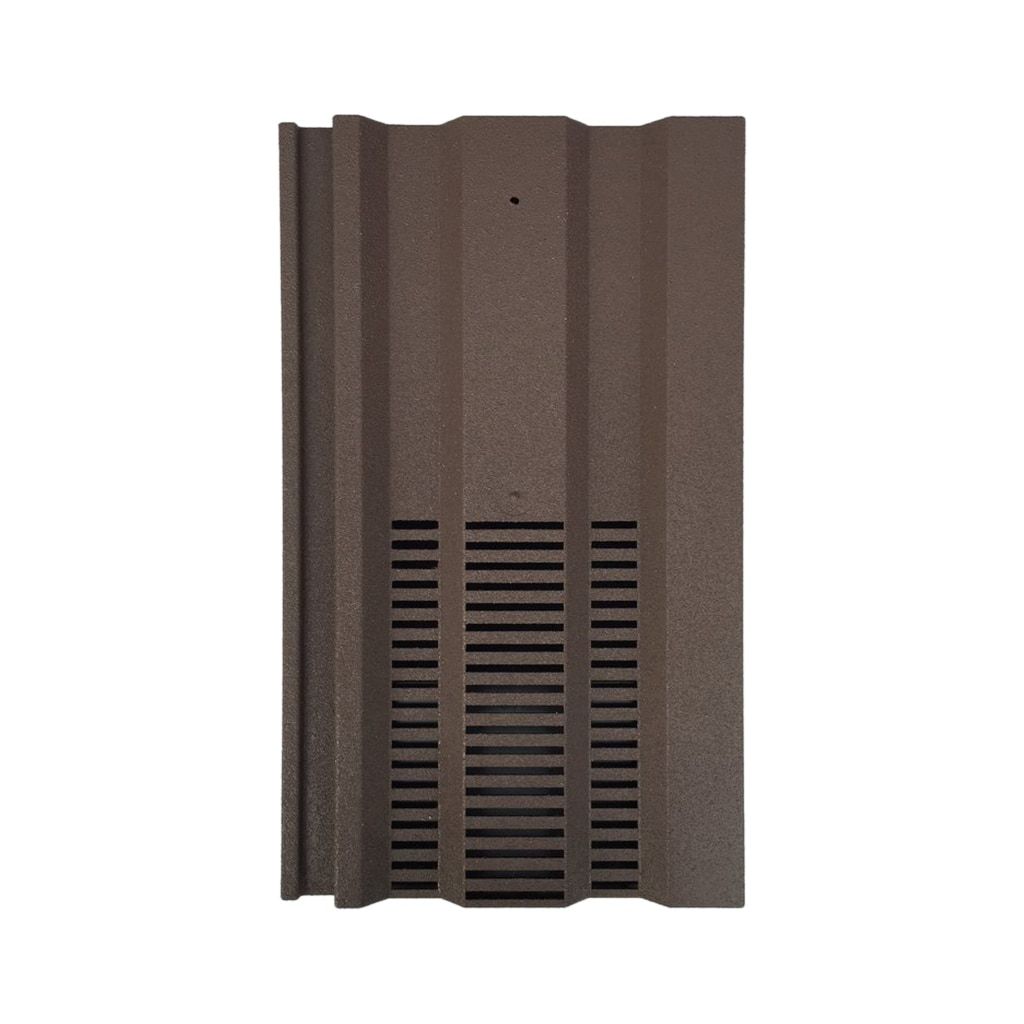

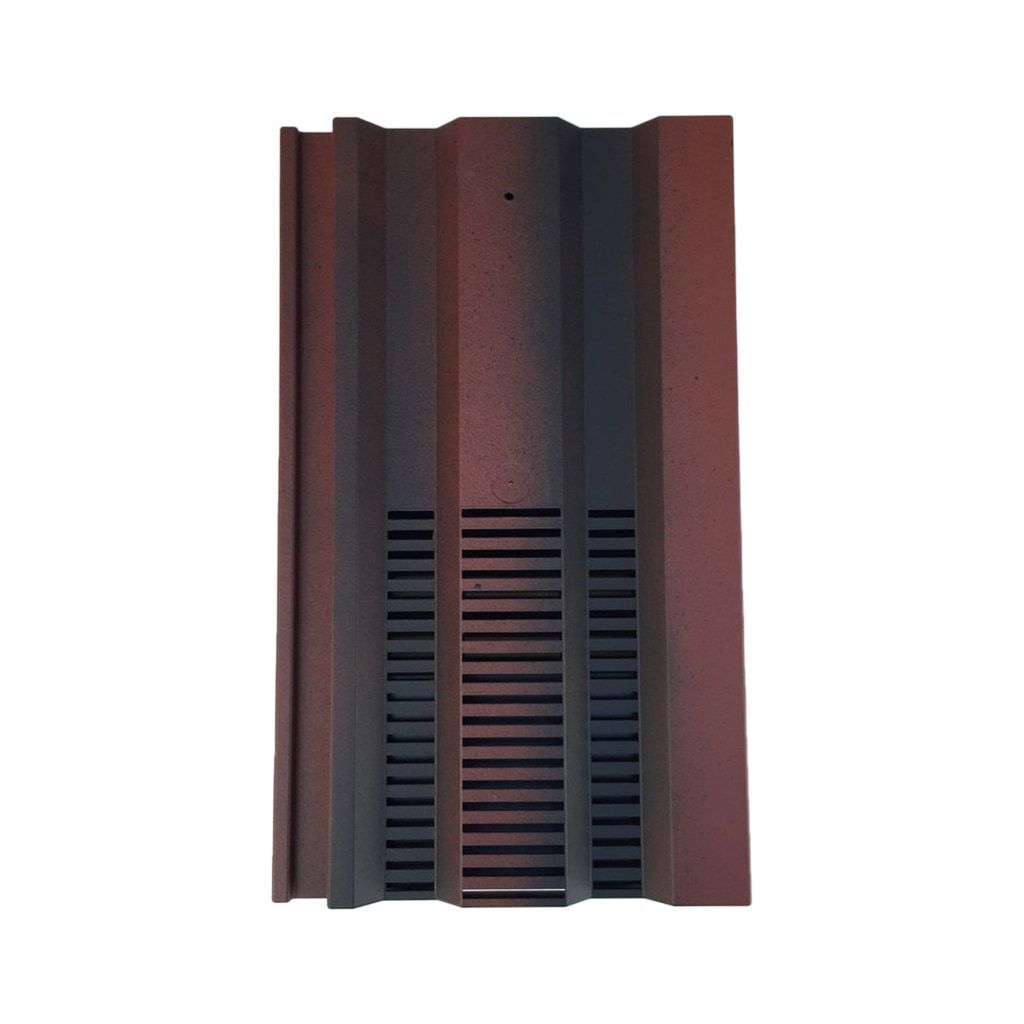

You can select your colour from the colour drop down menu.
You can request a colour match by email to info@beddoesproducts.com or phone on 07977748593.
Package
Vent Only
Suitable for situations where only ventilation is required. If you aren’t connecting to any pipe work now or in the future, the ‘vent only’ option is all you require.

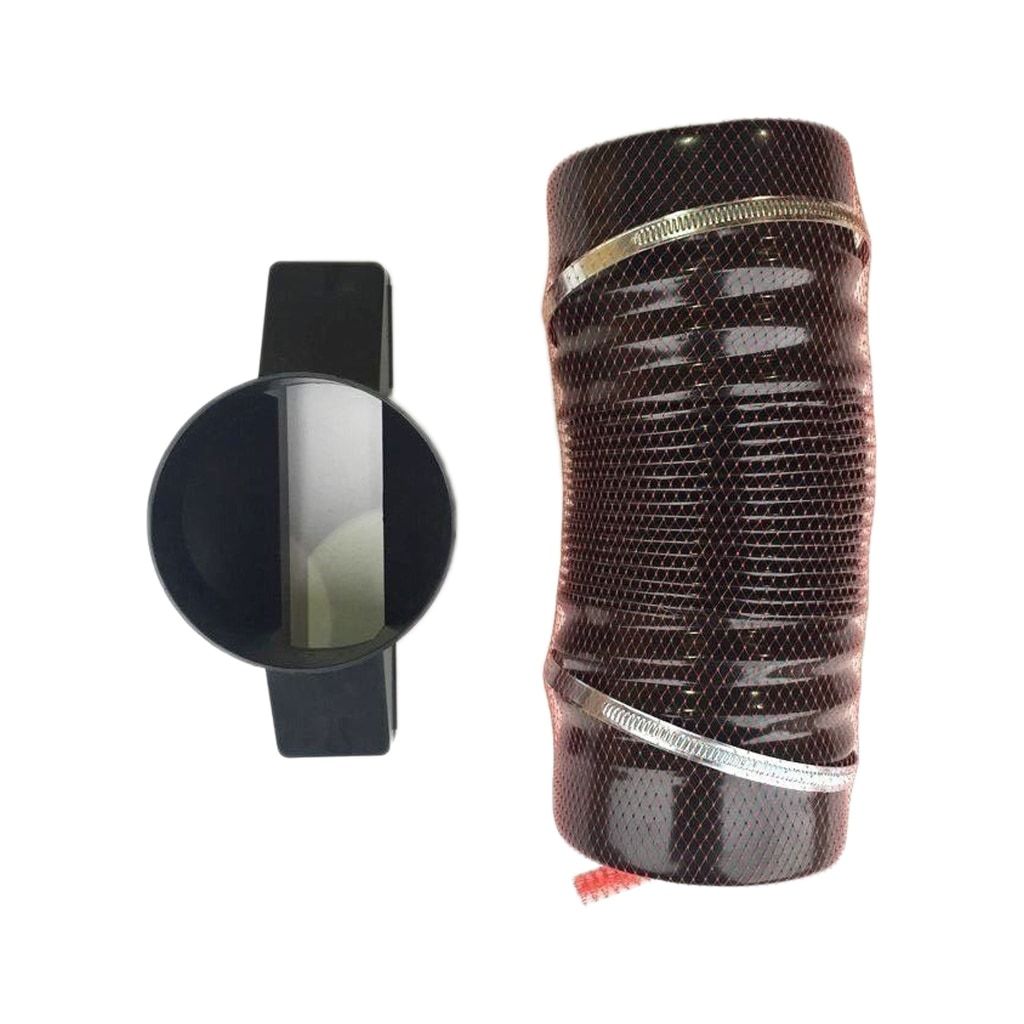

Vent + Pipe Adaptor
The pipe adaptor has a 110mm diameter and connects the roof tile vent to extraction units via existing pipe work.
Vent + Pipe Adaptor + Flexible Pipe
The flexible pipe provides a high quality flexible connection between the roof tile vent and existing pipe work. It can extend between lengths of 250mm - 550mm. Adjustable ties allow diameters between 120mm - 77mm.
