Inline Redland Delta Roof Tile Vent

Protect your home from damp with the Beddoes Products Inline Redland Delta Roof Tile Vent.

Stop loft condensation today — Give yourself peace of mind tomorrow.

Don’t risk the cost of treating damp.

The Problem with Roof Ventilation

Everything you do at home generates heat. And all that heat rises through the ceilings into your loft.

So your loft needs to breathe.

You would think that’s a built-in feature. But it’s not.

On older houses, the roof was installed with a breathable membrane or nothing at all. And the effectiveness of both options is questionable.

The Solution? — The Redland Delta Roof Tile Vent

The Beddoes Products Inline Redland Delta Roof Tile Vent is a simple solution for roof ventilation.

You can even connect your bathroom extractor fan or soil vent pipe. Just add a pipe adaptor.

We Like to Keep Things Simple

• Installation - One vent replaces one tile. And we colour match so your roof looks untouched.
• Find the right product - Just use the information below. You can order with one click.
• Delivery - Free on all orders.
• Returns -  Free 30-day returns. No questions asked.

Choosing the Right Product

Nobody likes returns. So we help you choose the right product by giving as much product information as possible.

The Beddoes Products Inline Redland Delta Roof Tile Vent is compatible with:

• Redland Delta
• Length - 430 mm
• Width - 380 mm

Choosing the Right Package

Colour

You can select your colour from the colour drop down menu.

You can request a colour match by email to scott@beddoesproducts.com.

Package

Vent Only

Suitable for situations where only ventilation is required. If you aren’t connecting to any pipe work now or in the future, the ‘vent only’ option is all you require.

Vent + Pipe Adaptor

The pipe adaptor has a 110mm diameter and connects the roof tile vent to extraction units via existing pipe work.

Vent + Pipe Adaptor + Flexible Pipe

The flexible pipe provides a high quality flexible connection between the roof tile vent and existing pipe work. It can extend between lengths of 250mm - 550mm. Adjustable ties allow diameters between 120mm - 77mm.

What's It For?

A Beddoes Products Inline Redland Delta Roof Tile Vent gives an almost-invisible solution to 2 problems:

1. Ventilation of a roof space

A retrofit solution to condensation in the roof space.

2. Soil or mechanical extraction

A terminal for soil vent pipes or mechanical extraction units - most commonly bathroom extraction.

Airflow resistance charts are available on request to determine suitability of the product when used in conjunction with extraction units.

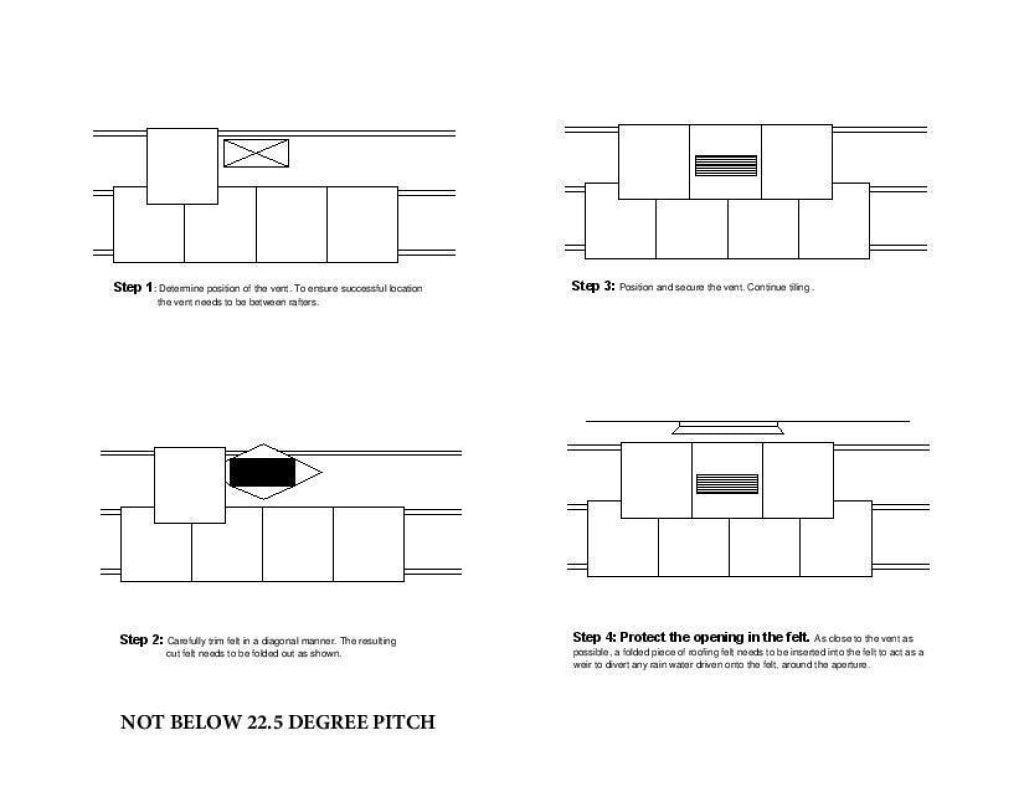

How Do You Install It?

Installation is simple.

Product fitting instructions included.

Download Redland Delta Roof Tile Vent fitting instructions (PDF)

Fast + Free Delivery

Delivery is FREE on all of our orders. And we’ll never take more than 3 days to send it.

We only use DPD Next Day services. So you’re guaranteed to receive your order the day after it’s sent.

The BP Risk-free Guarantee

Everyone hates returns. That’s why we give as much product information as possible.

But if you do happen to order the wrong thing...we forgive you.

Return your order within 30 days and get a full refund.

We should be able to help you find the right product. Just send us a message.

Download and print your Returns Form here: Returns Form.

The Technical Part

Details

• UK designed and manufactured

• Made from thermoplastic

• Single tile format

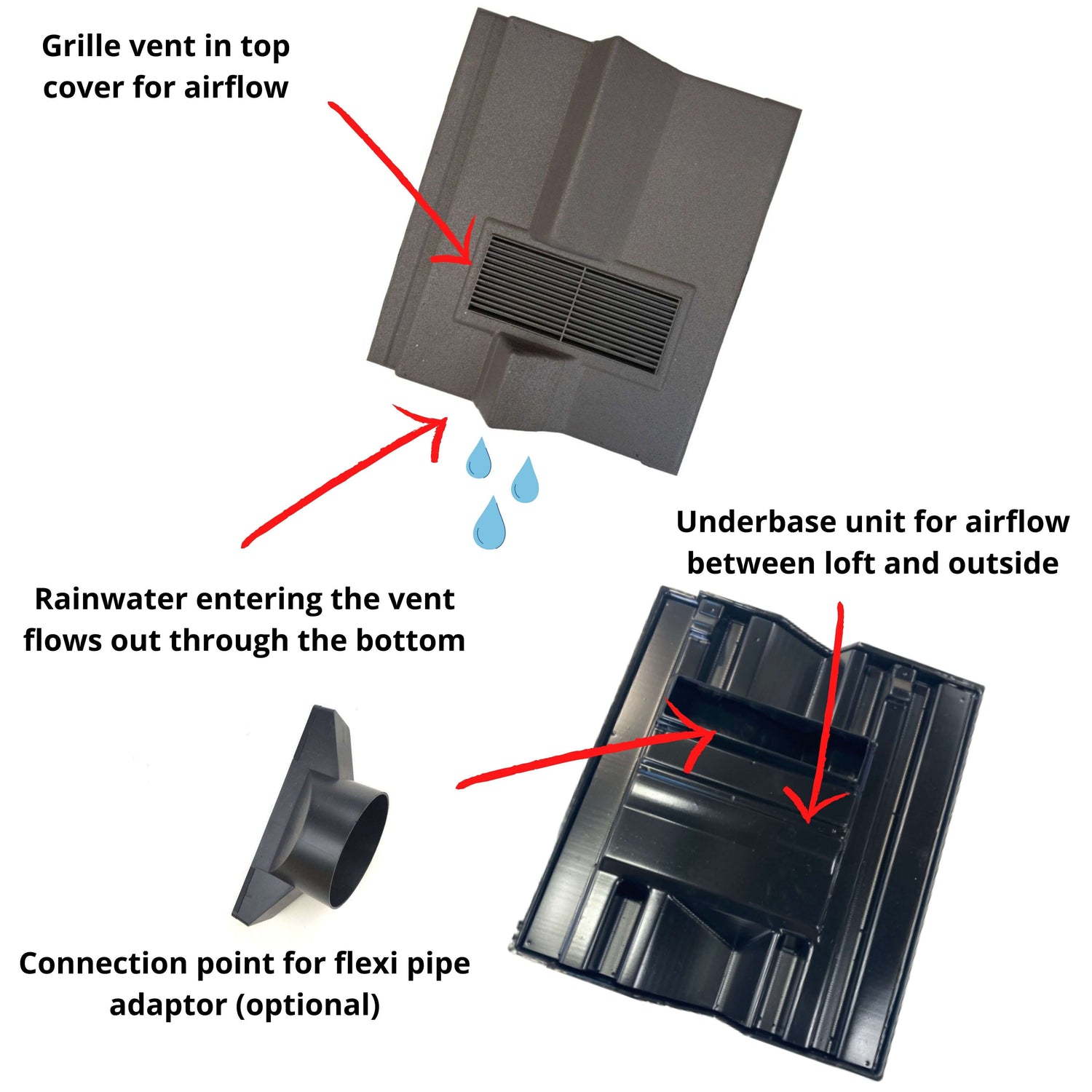

Features

• Upper cover containing a grille in the visible area of the tile
• An underbase collects and discharges rainwater back to the roof
• The 4mm grille allows an airflow capacity of 10,000mm² per unit
• The grille also acts as an insect screen and a baffle against wind-driven rain
• Minimum roof pitch - 22.5 degrees
