Beddoes Products Inline Redland Stonewold Mk2 Vent Tile
Regular price £44.99
Unit price per
Description

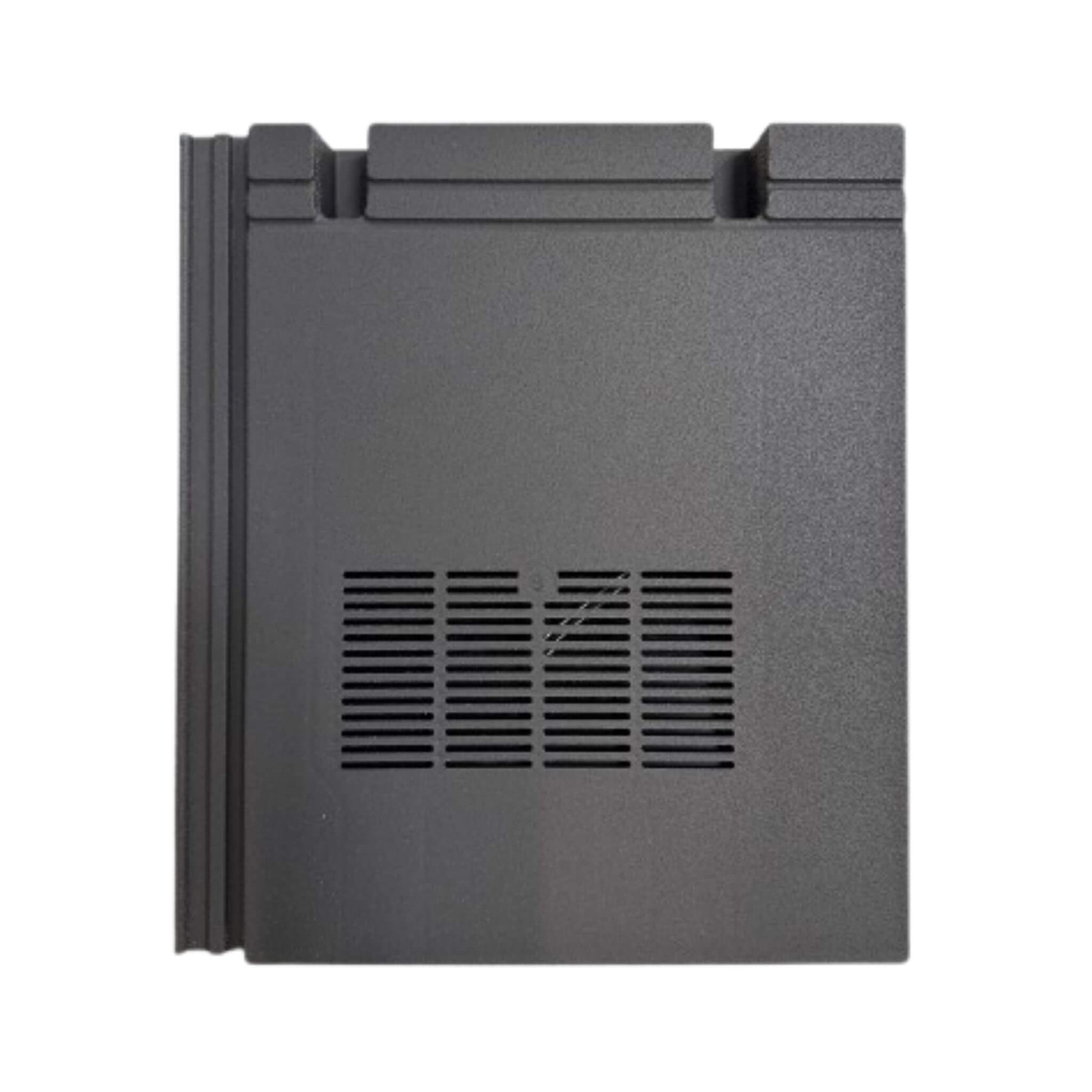

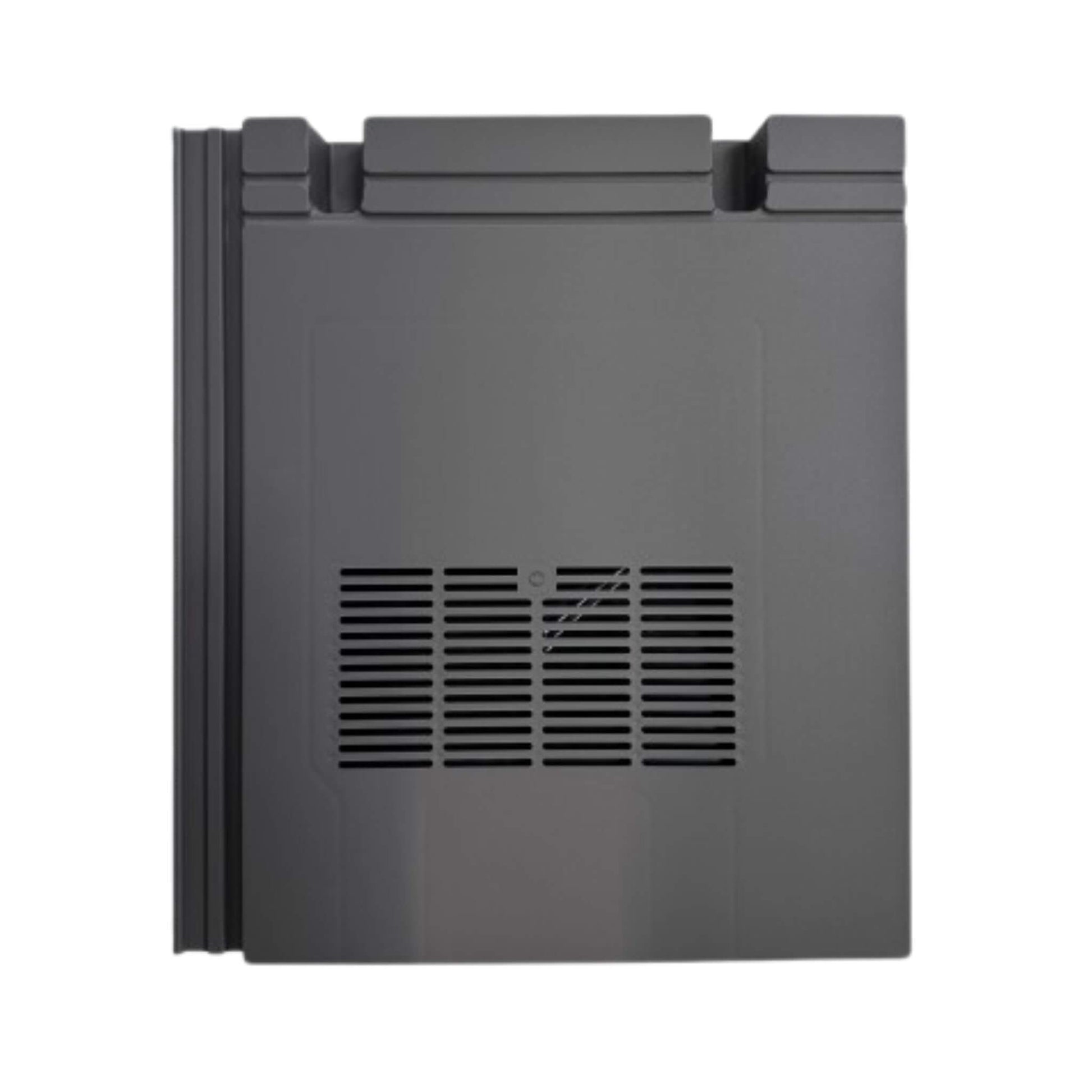

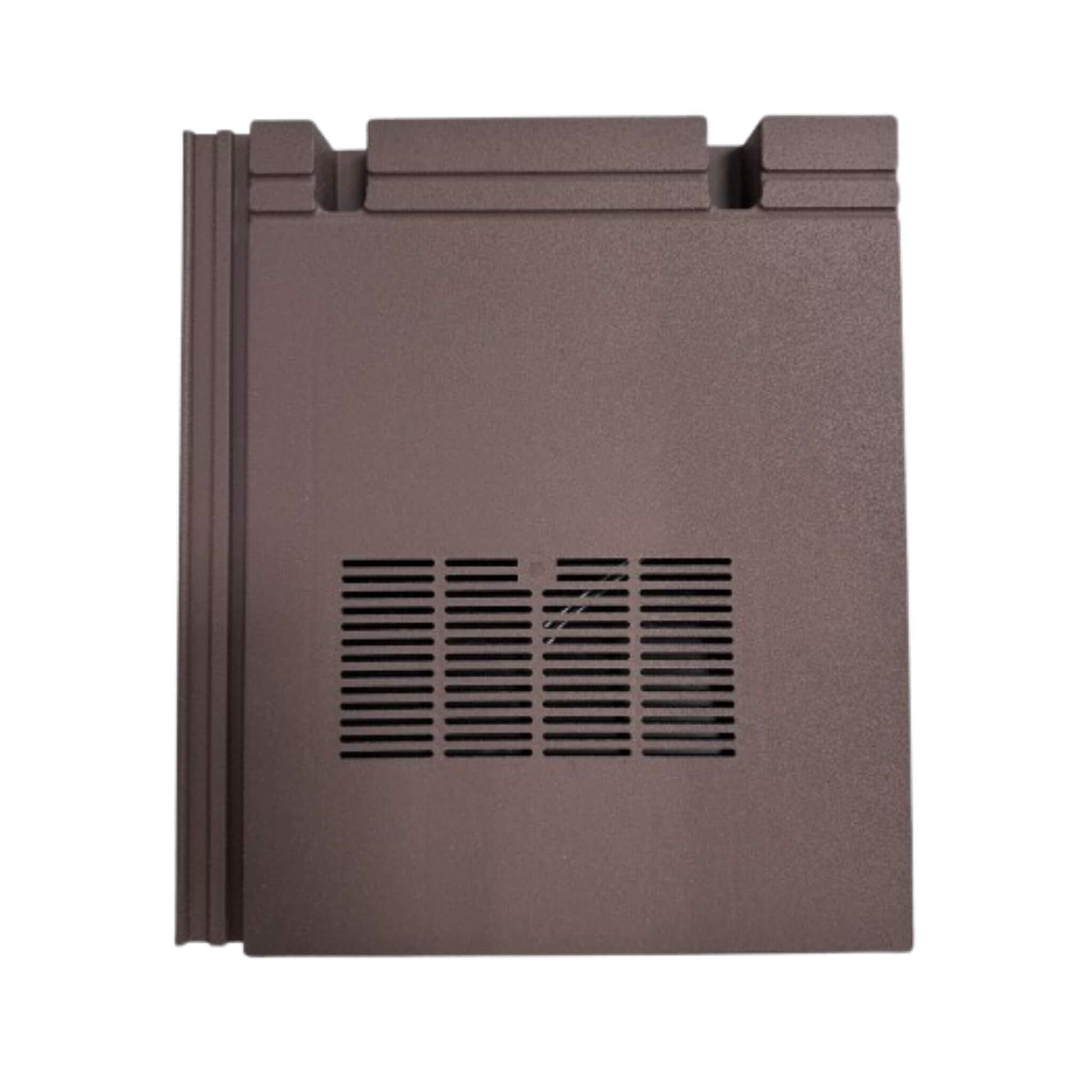

Inline Redland Stonewold Mk2 Vent Tile
The Beddoes Products Inline Redland Stonewold Mk2 Vent Tile provides a simple solution to problems of roofspace ventilation, mechanical extraction and soil stack termination. Sleek design ensures the vent is almost invisible from ground level. Water entering the vent flows back out onto the roof.
Compatibility
Redland Stonewold II (Mk2)
Length - 435 mm
Width - 380 mm
Purpose
The Beddoes Products Inline Redland Stonewold Mk2 Vent Tile gives a discreet solution to 2 problems:
Ventilation of a roof space
A retrofit solution to condensation in the roof space.
Soil or mechanical extraction
A terminal for soil vent pipes or mechanical extraction units - most commonly bathroom extraction.
Airflow resistance charts are available on request to check compatibility for other purposes.

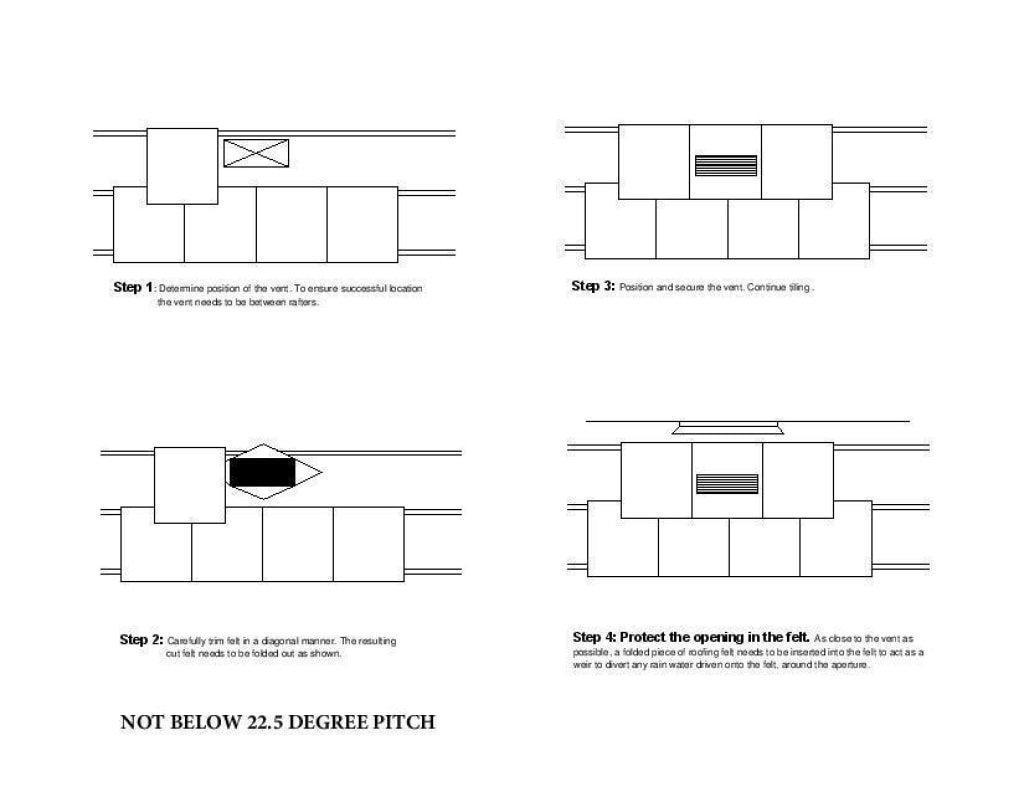

Installation
Installation is quick and easy.
Full fitting instructions are included.
Download stonewold mk2 fitting instructions (PDF)
Item Spec
Country of Manufacture
UK
Material
Thermoplastic
Format
Single tile
Features

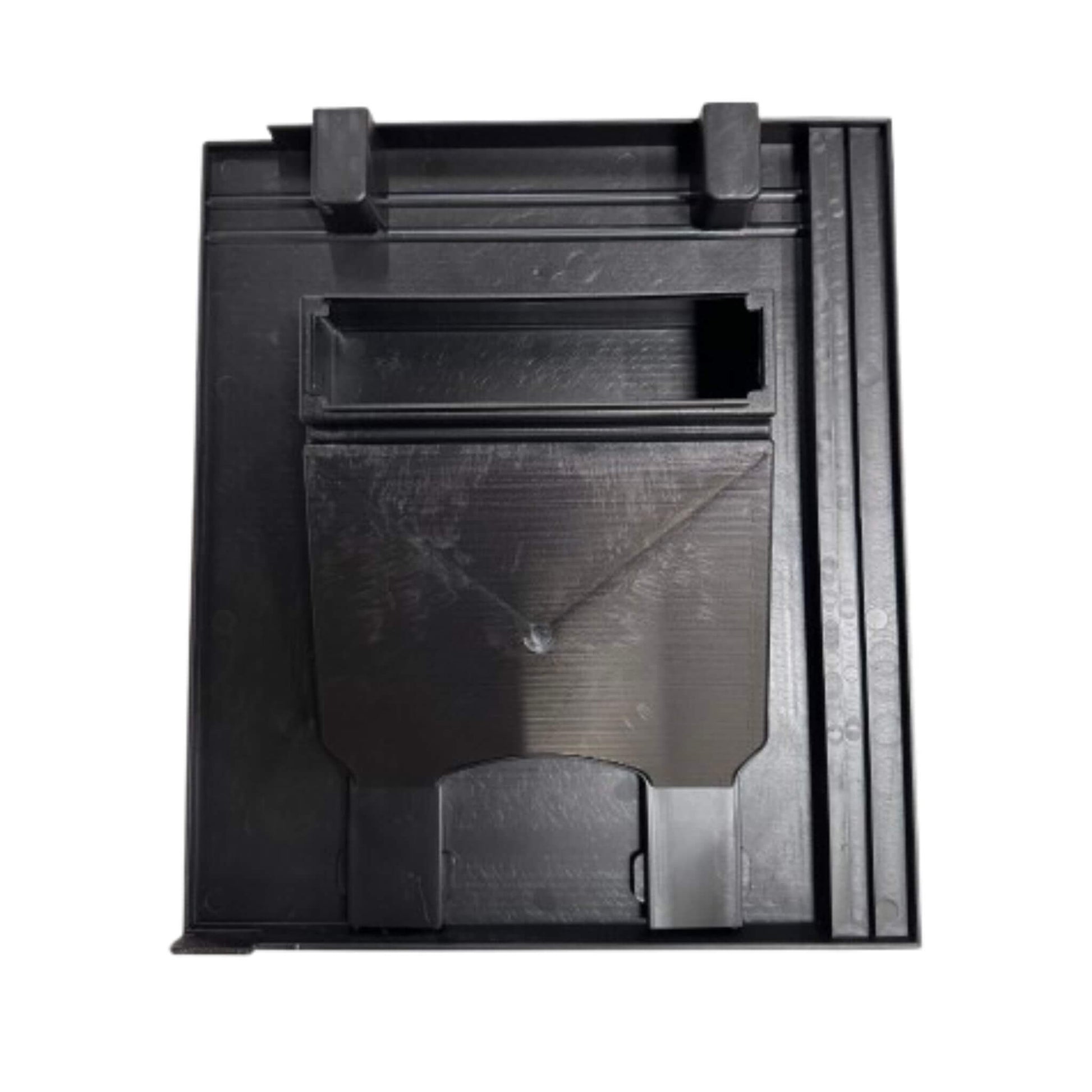

Upper cover, which has a grille formed within the visible area of the tile.
An underbase collects and discharges rainwater back to the roof.
The 4mm grille allows an airflow capacity of 10,000 mm² per unit.
Airflow resistance charts are available on request to determine suitability of the product when used in conjunction with extraction units.
Roof Pitches
Over 22.5 degrees.
Package
Colour
You can select your colour from the colour drop down menu.
You can request a colour match by email to info@beddoesproducts.com or phone on 07977748593.
Package
Vent Only
Suitable for situations where only ventilation is required. If you aren’t connecting to any pipe work now or in the future, the ‘vent only’ option is all you require.
Vent + Pipe Adaptor
The pipe adaptor has a 110mm diameter and connects the roof tile vent to extraction units via existing pipe work.
Note: For this product, adaptors must be manufacturer fitted if required. If you intend to connect to existing pipe, either now or in the future, we suggest you purchase this option.
Vent + Pipe Adaptor + Flexible Pipe
The flexible pipe provides a high quality flexible connection between the roof tile vent and existing pipe work. It can extend between lengths of 250mm - 550mm. Adjustable ties allow diameters between 120mm - 77mm.
