Roof Tile Vent Adaptor
Make connection easy with the Beddoes Products Roof Tile Vent Adaptor for extractor fans.
If you have a bathroom extractor fan, you have 2 ways to vent it:
1️⃣ Through the wall
2️⃣ Through the roof
We recommend venting through the roof, simply because it looks nicer and makes less mess.
This product converts the rectangular vent outlet to a 110mm pipe opening. So you can easily connect your extractor fan or soil stack outlet. We also make a 110mm to 100mm reducer for a better fit with your 100mm pipe.

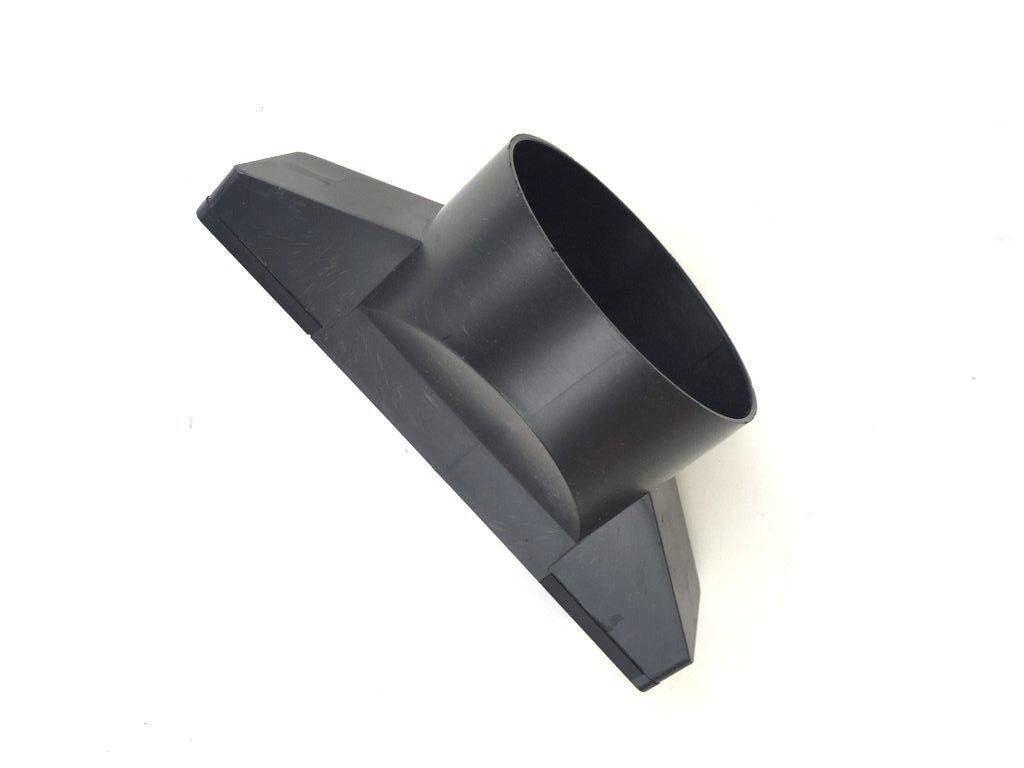

Basic Roof Tile Vent Adaptor
The basic 110 mm vent tile adaptor fits all Beddoes Products roof vents (excluding the Marley Ludlow Plus Vent Tile and Redland 49 Vent Tile).

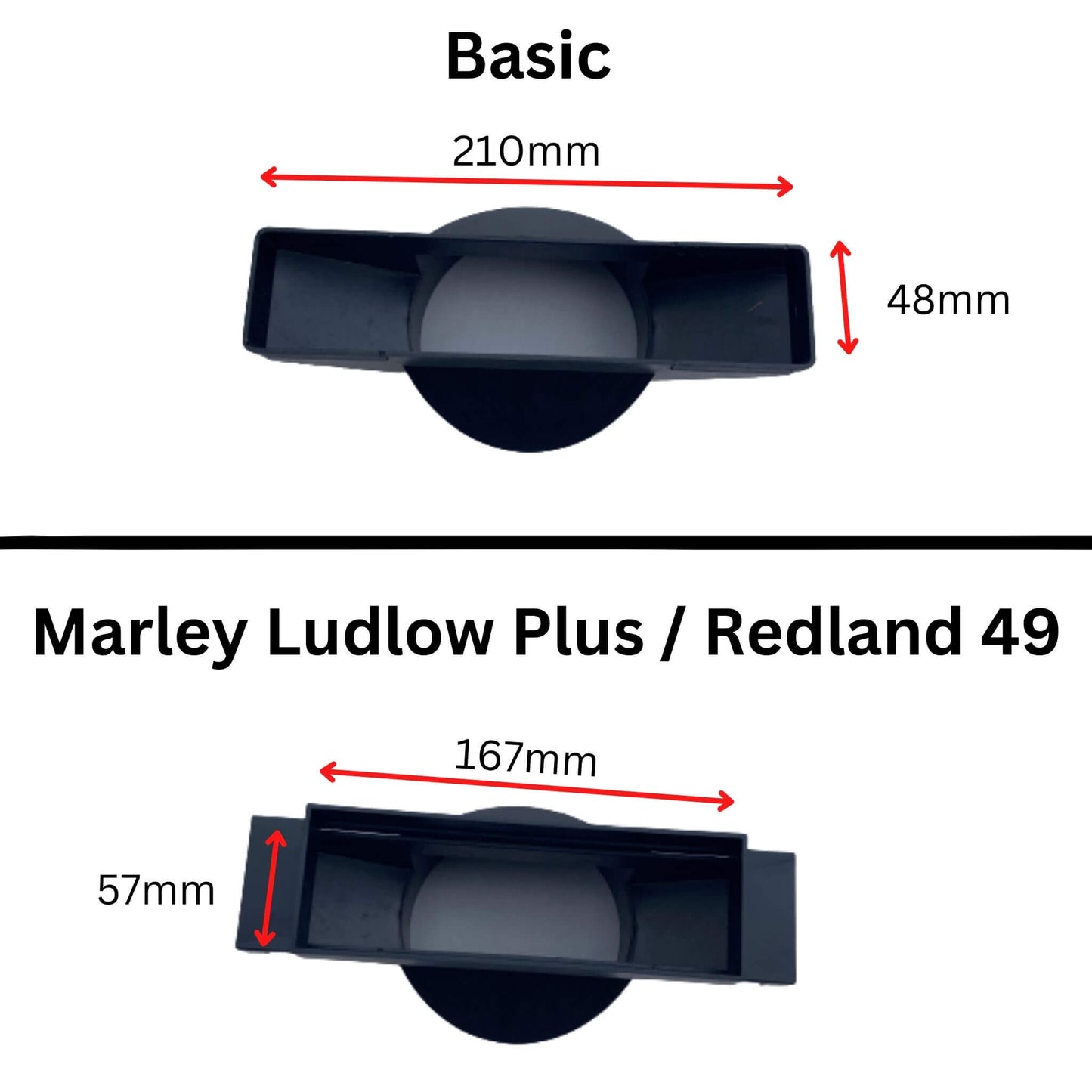

The rectangular end has dimensions of 210 x 48 mm approx.
The depth is 85 mm.

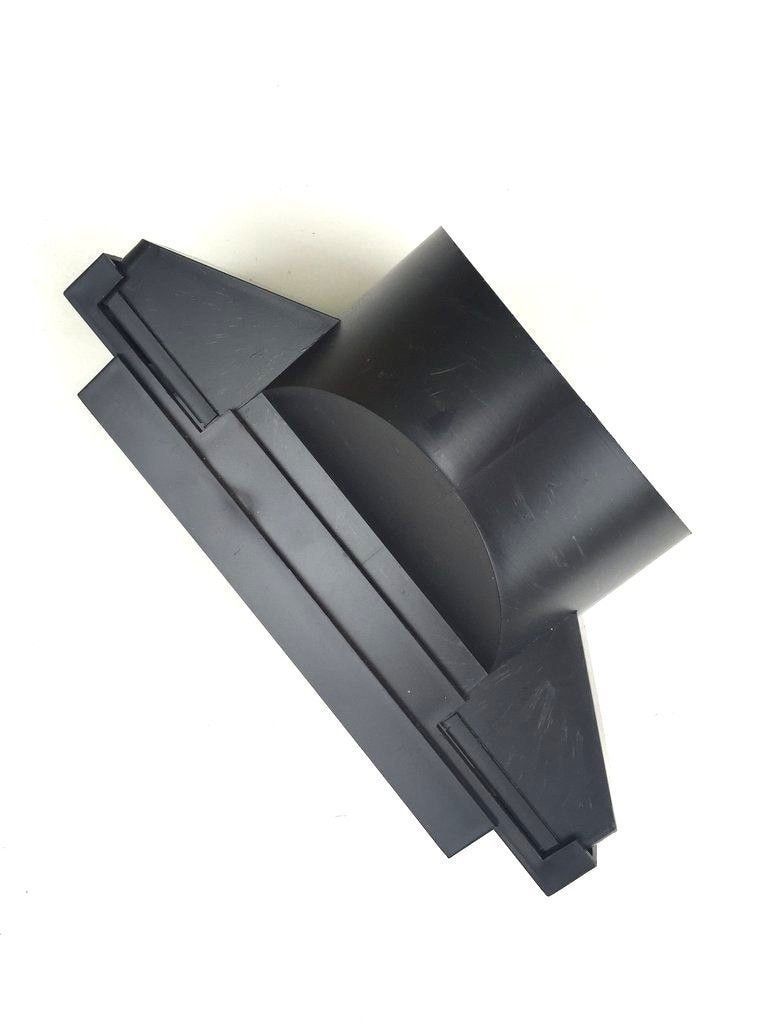

Marley Ludlow Plus / Redland 49 Roof Vent Adaptor
This vent tile adaptor has the same 110 mm diameter as the basic version but comes with an extra component so it can fit onto the back of Marley Ludlow Plus Vent Tile and Redland 49 Vent Tile.
The rectangular end has dimensions of 167 x 57 mm approx.
The depth is 105 mm.
